    Evo 960 temp on AW 17r3

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Klk450, Sep 14, 2017.

  1. Klk450

    Klk450 Notebook Evangelist

    Reputations:
    13
    Messages:
    325
    Likes Received:
    55
    Trophy Points:
    41
    Hello everyone, as the tittle suggest I recently bought a Samsung 960 EVO 500GB for my AW 17 r3 and I've noticed HWinfo displaying two temperatures for it. I've only just started installing a couple of games and the temperature for "drive temperature 2" is getting up to 85C, which leaves me baffled since the PM951 NVME that came with my laptop doesn't go beyond 60C. What can be done to alleviate some of the heat and which temperature should I follow since it's displaying two. https://imgur.com/24M0xSU

    Last edited: Sep 14, 2017
    Klk450, Sep 14, 2017
    #1
  2. draxen

    draxen Notebook Consultant

    Reputations:
    21
    Messages:
    105
    Likes Received:
    9
    Trophy Points:
    31
    I have the same problem in that HWInfo displays 2 temps for each 960 Evo. Personally I've just been ignoring the 2nd temperature. My reasoning is that I've seen it hit 90 degrees C but no thermal throttling occurs and the SSD reports no problems. I don't know where it's pulling the 2nd temperature from but I doubt that it's valid data.

    draxen, Sep 14, 2017
    #2
  3. don_svetlio

    don_svetlio In the Pipe, Five by Five.

    Reputations:
    351
    Messages:
    3,616
    Likes Received:
    1,825
    Trophy Points:
    231
    Nothing much you can do. The newer NVMe drives run insanely hot. Even in desktops with good airflow they go to about 50-55*C. It's normal, just try not to get it to 100*C or such for prolonged periods.

    don_svetlio, Sep 14, 2017
    #3
    Vasudev likes this.
  4. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,050
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Try switching places of SSDs.

    Vasudev, Sep 14, 2017
    #4
  5. a_lunatic

    a_lunatic Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    16
    Trophy Points:
    6
    I got a 960 EVO 500G in my AW 17 R3 and only had 1 temp for it but after messing with the HWinfo settings it is showing 2 now, 1 is maxed at 47, 2 is maxed at 70 within the last 4 and a half hours.

    a_lunatic, Sep 14, 2017
    #5
  6. Klk450

    Klk450 Notebook Evangelist

    Reputations:
    13
    Messages:
    325
    Likes Received:
    55
    Trophy Points:
    41
    After using crystaldisk it shows the temperature that doesn't go beyond 60C, I guess I'll just ignore the second temperature from Hwinfo.

    Klk450, Sep 14, 2017
    #6
    Papusan and Vasudev like this.
  7. b.kolev

    b.kolev Notebook Guru

    Reputations:
    17
    Messages:
    74
    Likes Received:
    48
    Trophy Points:
    26
    I just bought EK-M.2 NVME HEATSINK ( https://www.ekwb.com/shop/ek-m-2-nvme-heatsink-black ) and now my 960 EVO 500GB drive temperature 2 at hard gaming as BF1, GTA V doesn't go beyond 68 degree! Before it was able to get 90 C. At idle stays at max 55 degree vs 74 before.

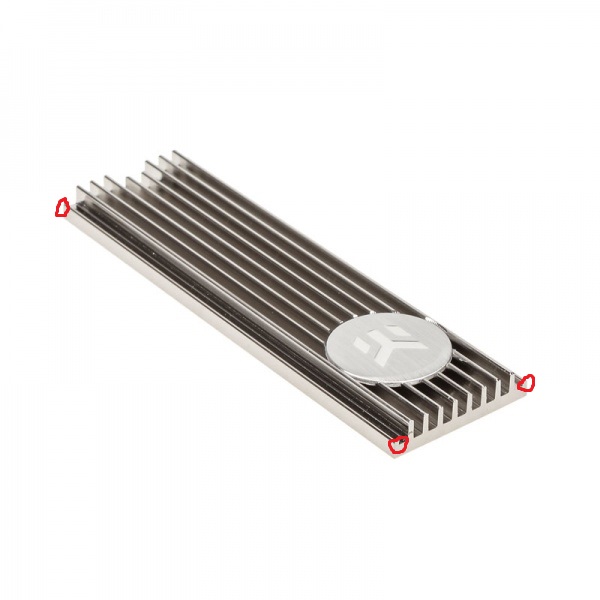

    Of course there is a little problem - the height of the heatsink is too high, so you need to reduce it (look at the red circles in picture I uploaded). Otherwise you cannot put the bottom panel of the laptop. Something else ... you cannot put the nvme with hs in the port SSD 3 - only in SSD 2 works. :/

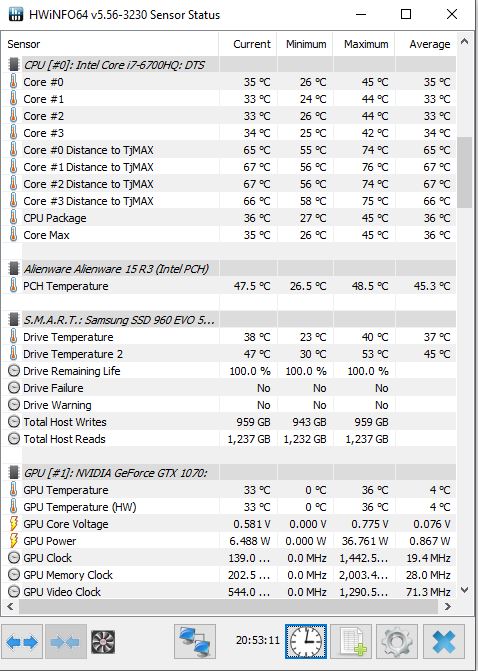

    I am attaching a pictures of my temps after I put the HS and one picture of the needed height.

    Machine specs: AW 15 R3 6700HQ GTX1070


    Attached Files:

    b.kolev, Sep 25, 2017
    #7
