    Dissasembly NEW Alienware 15

    Discussion in '2015+ Alienware 13 / 15 / 17' started by jexu, Apr 16, 2015.

  1. jexu

    jexu Notebook Enthusiast

    Reputations:
    19
    Messages:
    34
    Likes Received:
    15
    Trophy Points:
    16
    jexu, Apr 16, 2015
    #1
    vampyren, Meaker@Sager, bnosam and 2 others like this.
  2. Alienware-L_Porras

    Alienware-L_Porras Company Representative

    Reputations:
    3,658
    Messages:
    6,874
    Likes Received:
    969
    Trophy Points:
    281
    Alienware-L_Porras, Apr 17, 2015
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    That was very nicely done, very clear :)

    Meaker@Sager, Apr 17, 2015
    #3
  4. Hephaestos

    Hephaestos Notebook Guru

    Reputations:
    2
    Messages:
    55
    Likes Received:
    5
    Trophy Points:
    16
    To help others you may consider changing the title of this thread a bit, MyFixGuide has disassembly guides not only for AW15, but also for Alienware 13, 18, 14, 17, M18x, and other Dell notebooks.

    Last edited: Apr 21, 2015
    Hephaestos, Apr 21, 2015
    #4
    iPhantomhives likes this.
  5. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81
    Looking at that guide, it seems that when they get to the removal of the motherboard, they switched to a aw17?
    If you notice the motherboard once removed, has 4 m.2 slots....

    ejohnson, Apr 30, 2015
    #5
  6. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66

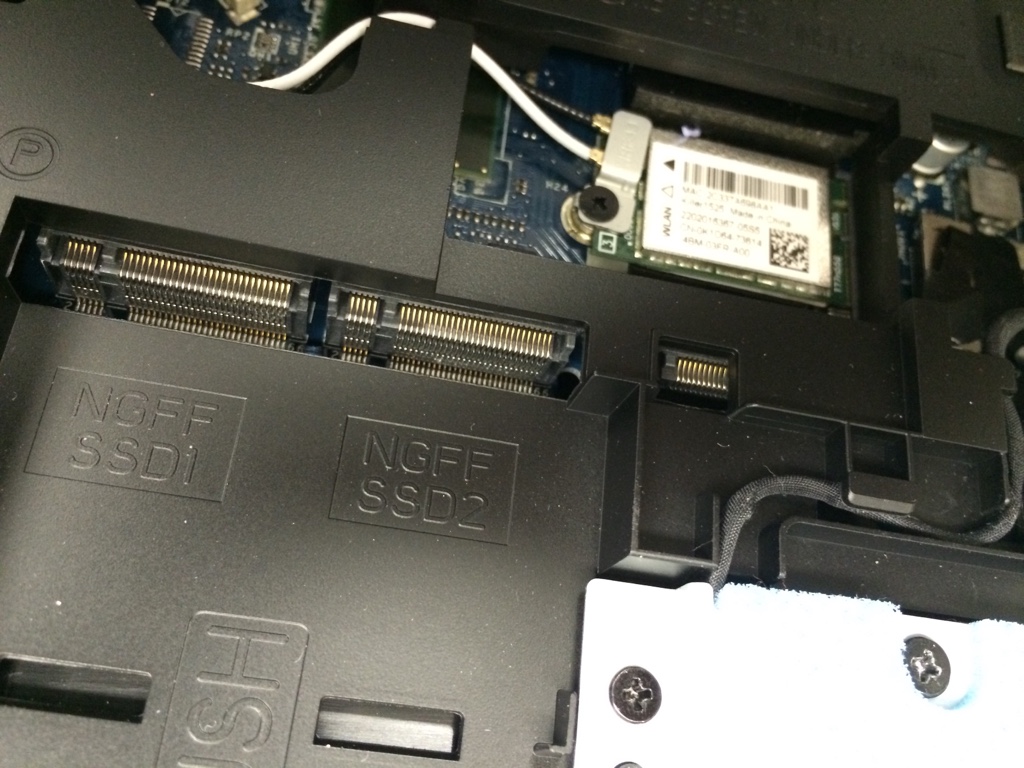

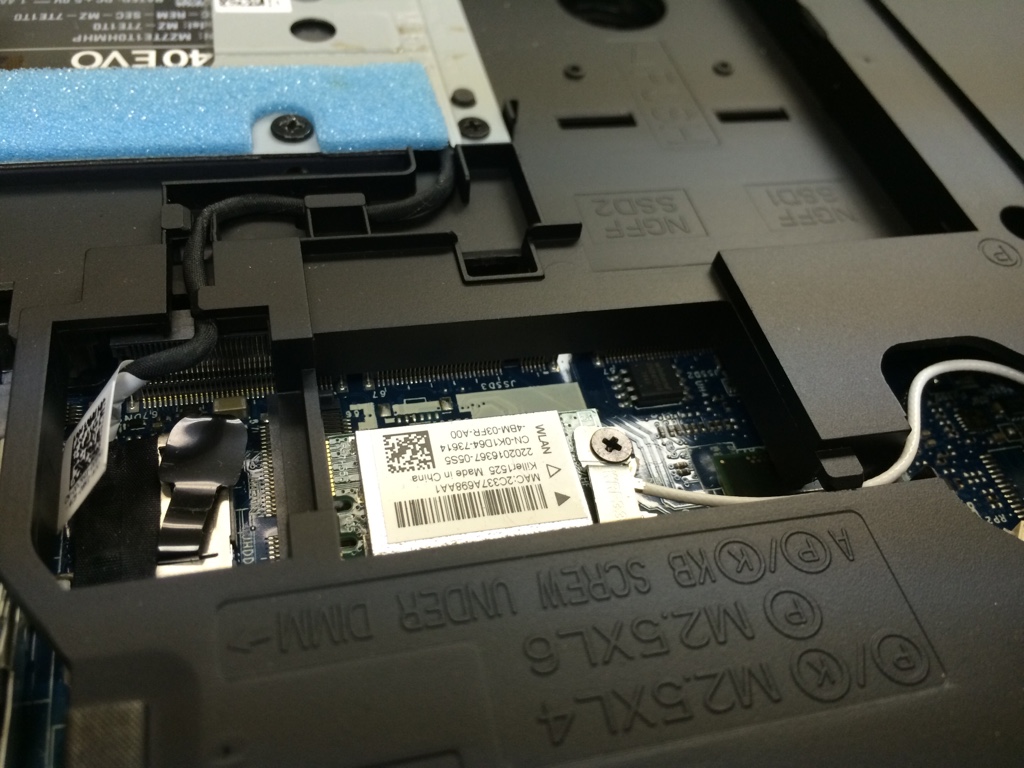

    It is aw15 board, for some reason we can't use those m2 slot, there is bottom base blocking it, unless you have some sort of cable to connect & hold the m.2 ssd? [​IMG] [​IMG]


    Sent from my iPhone using Tapatalk

    iPhantomhives, May 2, 2015
    #6
  7. corbintechboy

    corbintechboy Notebook Consultant

    Reputations:
    126
    Messages:
    189
    Likes Received:
    2
    Trophy Points:
    31
    Does that mean the whole motherboard has to be removed to do the yearly re-paste?

    That doesn't seem fun.

    corbintechboy, May 2, 2015
    #7
  8. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81

    So, if you were to cut away all the metal, remove the 2.5 inch drive, you could in theory run 4 m2 drives.... did they ever fix the lack of raid?

    ejohnson, May 4, 2015
    #8
  9. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    Yea.....

    Possible but I'm not sure if those slot really works. I'm waiting to receive my m.2 connector to try it out. raid? I believe aw15/17 don't have raid option, its not about fix.

    iPhantomhives, May 4, 2015
    #9
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The motherboard is identical between the 15 and 17, the casing can't cram everything in so some of the ports are blocked off in the 15.

    This helps Dell consolidate their manufacturing and will save a LOT of money. Which is likely the thinking behind it.

    Meaker@Sager, May 6, 2015
    #10
  11. T2050

    T2050 Notebook Deity

    Reputations:
    280
    Messages:
    1,699
    Likes Received:
    93
    Trophy Points:
    66
    There is no RAID as Dell sells no AW15 and AW17 R2 units with RAID configurations, therefore they have zero reason to support it.

    T2050, May 6, 2015
    #11
  12. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81
    Really? Thats kinda cool, i guess..

    ejohnson, May 7, 2015
    #12
  13. WalterJr

    WalterJr Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Guys i cant open the link ? is it still working ?

    WalterJr, May 7, 2015
    #13
  14. rizzo20

    rizzo20 Notebook Guru

    Reputations:
    38
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Is there a trick to get the service cover off? I took the 2 screws out and the cover wont budge. There is s nothing to grab a hold of it with, I'm afraid to pry it out because I don't want to gouge the plastic.

    rizzo20, May 7, 2015
    #14
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It won't impact users much but there is the potential for mods or easier parts replacement.

    Meaker@Sager, May 7, 2015
    #15
  16. DeeX

    DeeX THz

    Reputations:
    254
    Messages:
    1,710
    Likes Received:
    907
    Trophy Points:
    131
    Use a plastic scribe, Popsicle stick, or old credit card type thing. Get it in the crack and slide it along the length of each side.

    DeeX, May 7, 2015
    #16
    rizzo20 likes this.
  17. rizzo20

    rizzo20 Notebook Guru

    Reputations:
    38
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Thanks! I got frustrated and gave up...I usually break stuff easily...lol

    rizzo20, May 8, 2015
    #17
  18. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Frustration and rushing is never a good idea with notebooks ;) Best thing to stop rather than forcing your way in and snapping something.

    Meaker@Sager, May 9, 2015
    #18
