Alienware 17 2015 overclock

Been stress testing and benchmarking for the last few hours to get the best results that are stable, while maintaining proper temperatures during gaming. Just wanted to post results and settings. Your results may very!

Nvidia 980m
16 GB 1600 ram
I7 4710HQ







Witcher 3, GTA V, and many more running flawless at 60 fps maxed out minus one or two settings (hair effects in witcher and shadow / dof in gta).

Any recommendations let me know. But pushing the cpu any harder crashes it during real world use.

Cheers




Sent from my iPhone using Tapatalk



Bios is A00
PS Is 240 Watt



Hi Reptile.

I get this in 3D Mark 11

P=10810
GS = 12419
PS = 7720
CS = 7885

I run things a little different to you though. My GPU was left stock so I was only pushing the CPU I run this over clock everyday. I have a more extreme set up as well.

First of all in intel XTU, on the right hand side enable CPU total TDP, Power limit throttling, current limit throttling and also CPU core voltage. The run your settings again see if you get any throttling.

I have these settings
Multipliers all 37,36,35,35
Current limit 112.00A
BCLK 100.0MHZ
Dynamic CPU voltage -60mv
Turbo boost power max 58w
turbo boost short power max 58w

I get no throttling at all XTU score of 756. I do have a 240w PSU as well, Bios is AO2 but I make my fans run at max using HWinfo

Give that a shot see what happens



These settings dropped my xTU score from 762 to 640


Sent from my iPhone using Tapatalk



May flash bios A02 just to see how it reacts


Sent from my iPhone using Tapatalk



Let us know how it goes. Thanks for sharing BTW!

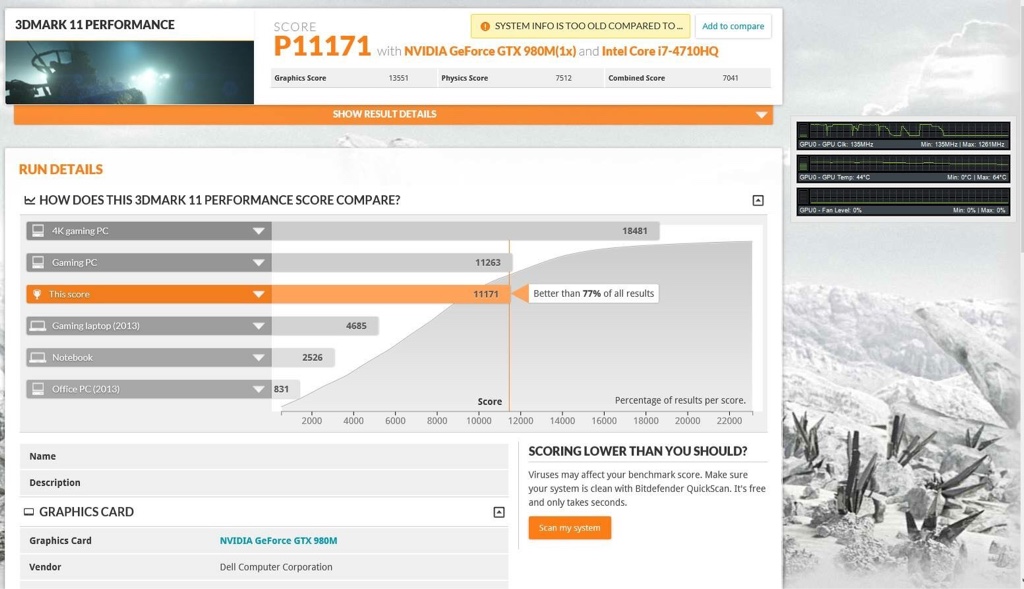

A02 scores poorly with the settings above and crashes during benchmarking with my optimized settings. I recommend running a00 with a 240 w ps and the settings above. Once I scored it back it scored 11171




Sent from my iPhone using Tapatalk



Those settings work perfect for me its what I run as my everyday over clock. Also it ensure I get no throttling of any kinda. Thermal current or power.

I shall have a play see what else I can get out of the system on A02.

Interesting to compare though. My Physics and combined scores are higher yet your system crashed and scored poorly another example of the silicon lottery at work



Yeah something else may be at play as it always is. Just adjusted the base clock some more and increased the p score to 11407


Sent from my iPhone using Tapatalk

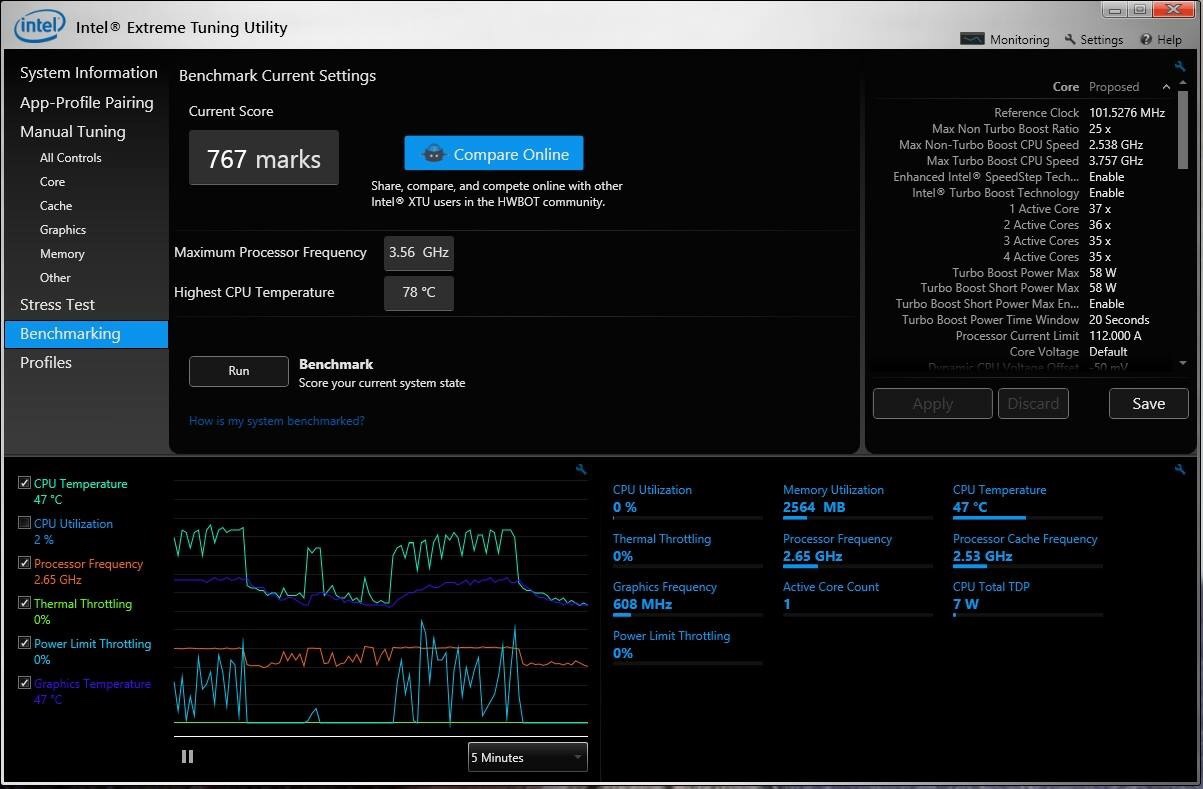

Ran again with your settings in a00 however I tweaked it again - -50 mV reference clock at 101.5267 boost power time window 20 seconds and this was my result




Sent from my iPhone using Tapatalk



I get 10377 physics score with my 4870HQ locked down power wise but undervolted running at 3.7ghz.



I shall try the clock speed you used tonight and see what I get

That's a nice score though.



I can get to just under 3.8 Ghz before it crashes. It's most stable in the latest configuration. Left a stress test running for 8 hours, and temperature never rose above 81 with no thermal throttling.



Okay I have just run your settings but I left it at -60mv and I got:

765 @ Temp 72C
at -50mv I get: 766 @ Temp 70C
Same settings but cache set to x37 I get 767: @ temp 71C

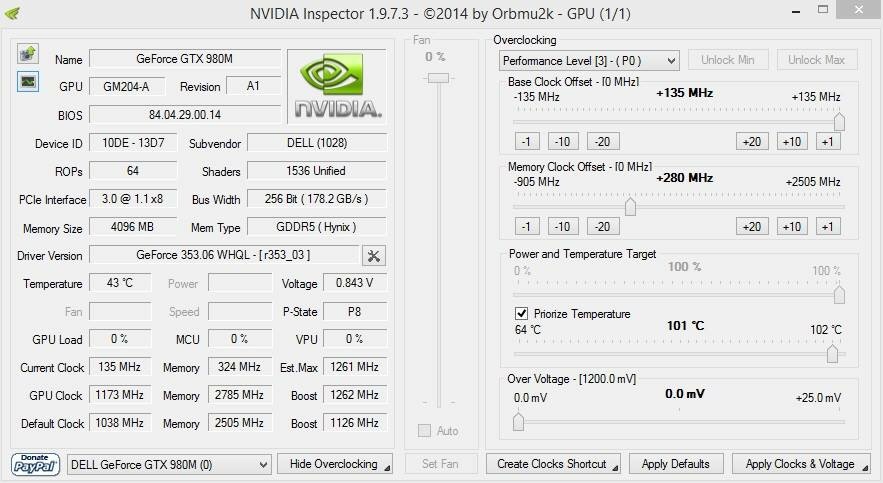

Definitely room for improvement still I feel somewhere. The GPU Can handle a lot more than its outputting - but unlocking the max capabilities is not an option using Nvidia inspector right now



I know under inspector can't get much more I edited more info into my post above



Definitely a random side note. But if I restart the pc I get a higher score in 3dmark11 versus running it after the cpu is warmed up.
