    Alienware 15 R2 display panel mystery

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Tony V, Oct 22, 2015.

  1. Darren889

    Darren889 Notebook Enthusiast

    Reputations:
    1
    Messages:
    24
    Likes Received:
    2
    Trophy Points:
    6
    I got my (SP)(A1) in the mail today, ebay 80 bucks, worth every penny it is sooooo much better. I highly recommend this display swap!

    (I will admit though the yellow hue never fully goes away. Next to any other display in my house it is a warmer tone l have now accepted that that is how it is but the brightness is way better and the glossy kicks ass)

    Last edited: Jun 29, 2016
    Darren889, Jun 29, 2016
    #301
    sirleeofroy likes this.
  2. VICKYGAMEBOY

    VICKYGAMEBOY Notebook Deity

    Reputations:
    512
    Messages:
    1,046
    Likes Received:
    800
    Trophy Points:
    131
    post some pics if possible, that would help others who got bad panels..

    VICKYGAMEBOY, Jun 29, 2016
    #302
  3. Darren889

    Darren889 Notebook Enthusiast

    Reputations:
    1
    Messages:
    24
    Likes Received:
    2
    Trophy Points:
    6
    Darren889, Jun 30, 2016
    #303
  4. sirleeofroy

    sirleeofroy Notebook Evangelist

    Reputations:
    22
    Messages:
    506
    Likes Received:
    169
    Trophy Points:
    56
    sirleeofroy, Jun 30, 2016
    #304
  5. Darren889

    Darren889 Notebook Enthusiast

    Reputations:
    1
    Messages:
    24
    Likes Received:
    2
    Trophy Points:
    6
    Darren889, Jun 30, 2016
    #305
  6. Bubloo

    Bubloo Notebook Consultant

    Reputations:
    15
    Messages:
    143
    Likes Received:
    23
    Trophy Points:
    31
    Can you share the profiles for the wf6-spb1

    Bubloo, Jun 30, 2016
    #306
  7. Darren889

    Darren889 Notebook Enthusiast

    Reputations:
    1
    Messages:
    24
    Likes Received:
    2
    Trophy Points:
    6
    Darren889, Jun 30, 2016
    #307
  8. nickbarbs

    nickbarbs Notebook Deity

    Reputations:
    301
    Messages:
    1,383
    Likes Received:
    83
    Trophy Points:
    66
    Yeah i can concur it has a pinky hue to the whites but it is pleasant and not yellow, your eyes easily adjust - looks more like the glossy film effect than anything

    nickbarbs, Jul 1, 2016
    #308
  9. jamesjacks22

    jamesjacks22 Notebook Guru

    Reputations:
    2
    Messages:
    65
    Likes Received:
    15
    Trophy Points:
    16
    Hey Guys,

    I'm looking at a 4K Panel for my Alienware 15. i currently have the crappy 1080P panel, would it be a straight swap and would the R1 touchscreen one work with the R2? I'm thinking of buying the whole LCD assembley.

    4K Worth thr upgrade over 1080p? seen theres a bew bios update to help windows 10 scaling, has that improved things?

    jamesjacks22, Jul 4, 2016
    #309
  10. sirleeofroy

    sirleeofroy Notebook Evangelist

    Reputations:
    22
    Messages:
    506
    Likes Received:
    169
    Trophy Points:
    56
    Hi,

    A swap for the 1080 to the 4K panel is not as simple as just changing the panel I'm afraid, the 1080 panel is mounted at the top and bottom whereas the 4K panel is mounted at the sides. This means to swap the panels you'll also need the entire assembly including the lid, panel, bezel and of course, the 40pin eDP cable as the 1080 machine comes with a 30pin eDP cable and does not have the bandwidth to handle 4K resolution.

    Personally, I wouldn't bother. Unless you happen to have a dead 4K machine available to you with an intact screen assembly then sourcing the parts will be too expensive in my opinion. Also, current mobile GPU's are not powerful enough to drive games at 4K (980m can just, forget about the 970m or below). Sure you'll get a few games to work but you'll have to drop quality settings down significantly to keep acceptable FPS whereas at 1080 you'll be able to max most settings and still have decent FPS.

    The R1 touch screen (again, you'll need the whole assembly) may fit as I'm pretty sure there are minimal changes to the chassis going from R1>R2 however I don't know if the touch would work as that may require a separate cable and subsequent port that might not be found on the R2 motherboard. Worst case, It might be that the touch didn't work but the screen would be fine or, the touch signal is sent via the eDP cable (as some other laptops do) and all would function well.

    As for the BIOS, I really don't see how a BIOS update improves Windows scaling, that is software and down to Microsoft to improve (somebody feel free to correct me on this!).

    If I were you, I would just swap out your 1080 panel for a better one as many of us have here, any of the 2 below would be best:

    LG Philips LP156WF6 SPB1 (Matte)
    LG Philips LP156WF6 SPA1 (Glossy)

    Those are effectively the same panel but either glossy or matte, they both have very good colour, they are bright and the response times are acceptable for gaming. A night and day difference over the stock panel.

    I hope that helps :)

    sirleeofroy, Jul 5, 2016
    #310
  11. GxGaNi

    GxGaNi Notebook Geek

    Reputations:
    34
    Messages:
    75
    Likes Received:
    1
    Trophy Points:
    16

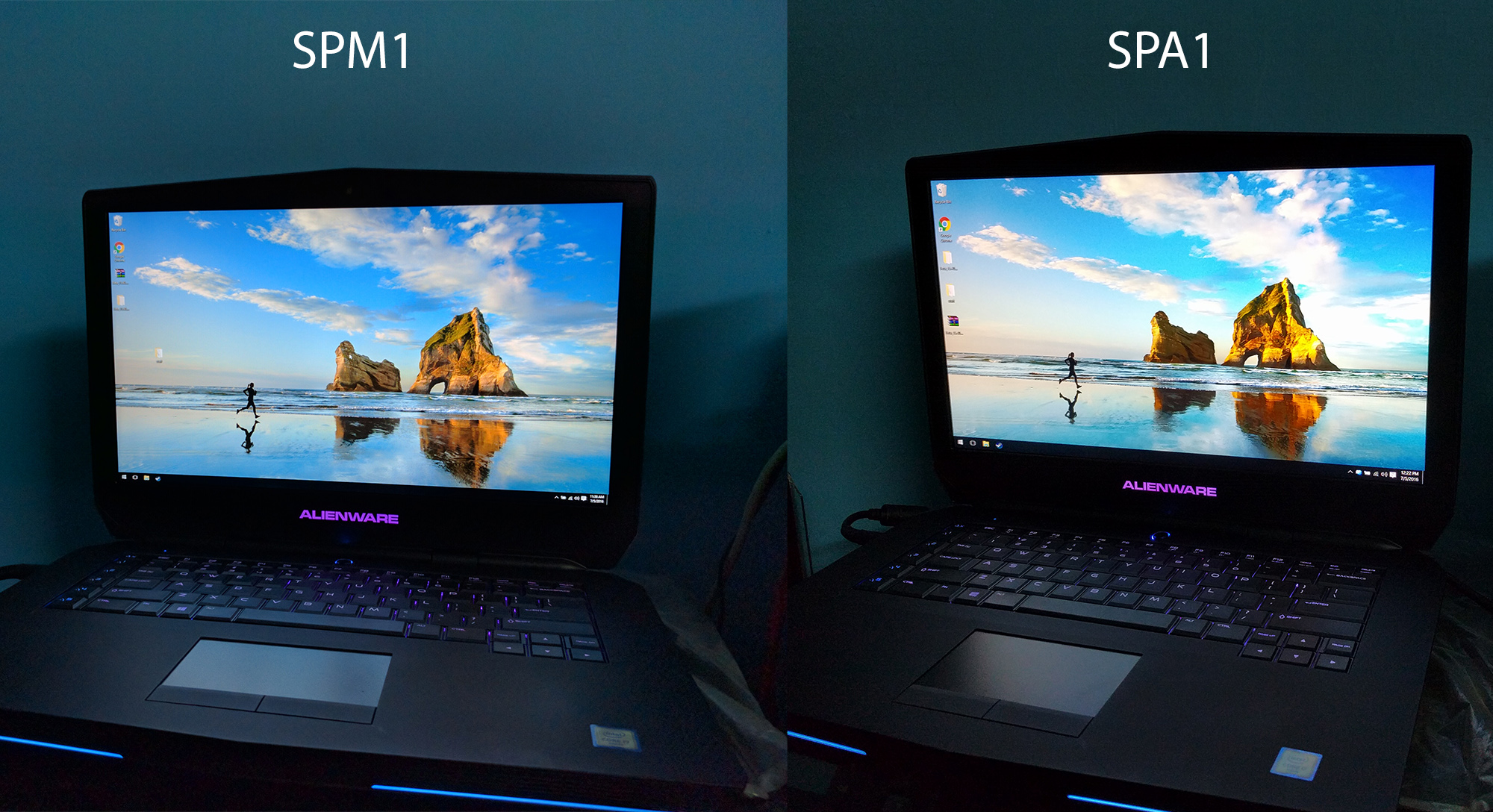

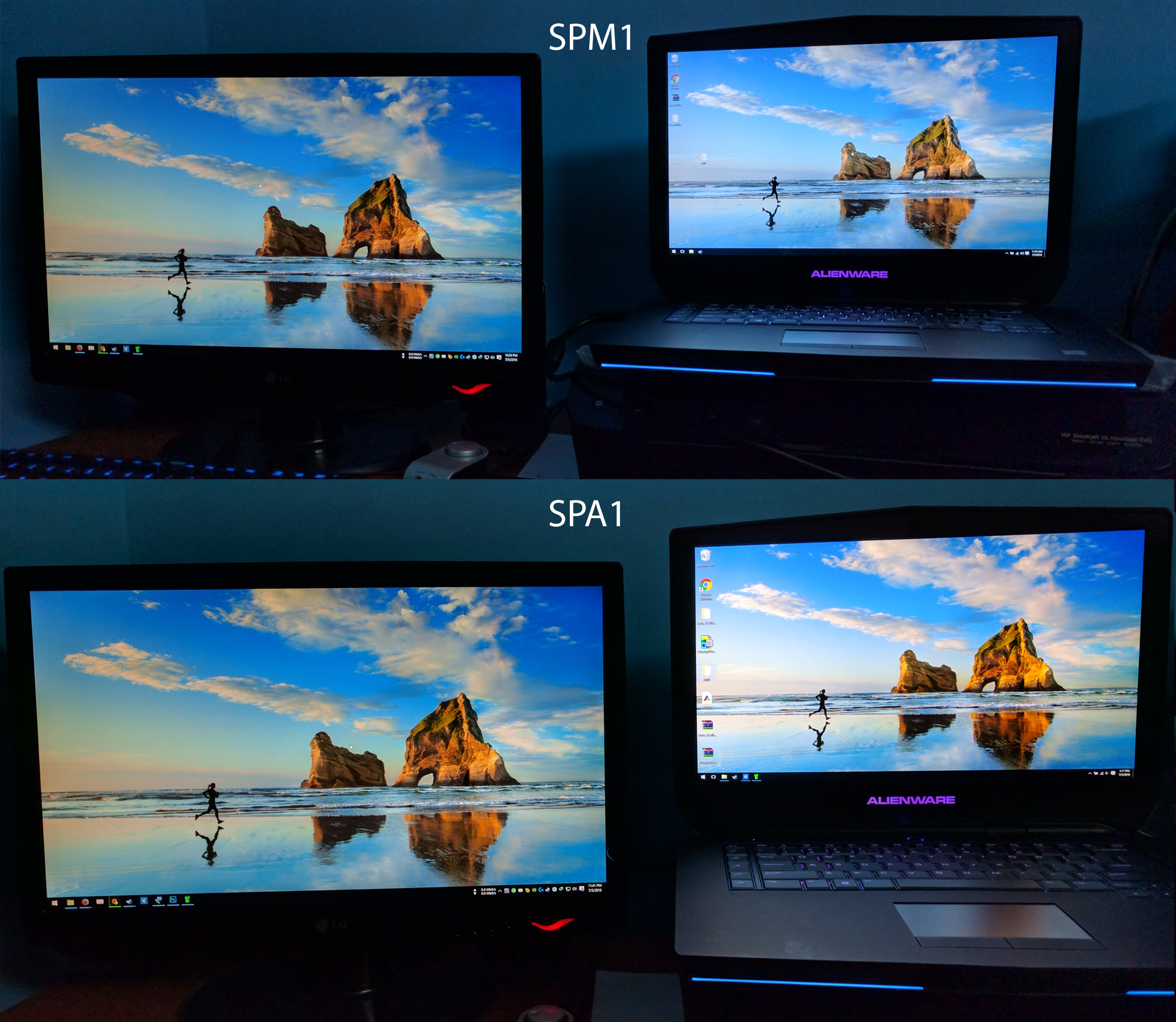

    Just got the AW15R2 and coming from M17X R2 (literally 5 years of inactivity). Got the panel swapped right away (took around 10 mins) and certainly love the glossy display (previously owned macbook pro).

    [​IMG]

    [​IMG]

    [​IMG]

    GxGaNi, Jul 5, 2016
    #311
    sirleeofroy likes this.
  12. nickbarbs

    nickbarbs Notebook Deity

    Reputations:
    301
    Messages:
    1,383
    Likes Received:
    83
    Trophy Points:
    66
    Great pics, yeah the difference is that dramatic. i'm pretty damend pleased with the SPA1 - and very thankful i'm not on the 4k display. Had that display for a few weeks and found it too red as well as irritating to deal with in windows. Beneift is nill for 15 inch laptop - even 1080p is hidpi enough for me - and i have QHD samsung s7 and 20/20 vision.

    nickbarbs, Jul 6, 2016
    #312
    Vasudev and sirleeofroy like this.
  13. GxGaNi

    GxGaNi Notebook Geek

    Reputations:
    34
    Messages:
    75
    Likes Received:
    1
    Trophy Points:
    16
    GxGaNi, Jul 10, 2016
    #313
  14. rramath

    rramath Notebook Guru

    Reputations:
    0
    Messages:
    72
    Likes Received:
    24
    Trophy Points:
    16
    DAFUQ .. The 4k touch glossy panel of R1 is back on R2 :| !!
    i was forced to buy a 4k matte screen :( !! Dell is frustrating.

    rramath, Jul 14, 2016
    #314
  15. oncdoc

    oncdoc Notebook Consultant

    Reputations:
    2
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    I got a SHARP LQ156D1 with my 15r2 supposed to be 350 nit but not so bright and also is matte.

    yellowish tint as well.

    You would figure for the highest upgrade of the screen you would get the best ?

    Should I have gotten the Igzo dispay 300 nit?

    oncdoc, Jul 16, 2016
    #315
  16. Jesus--

    Jesus-- Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

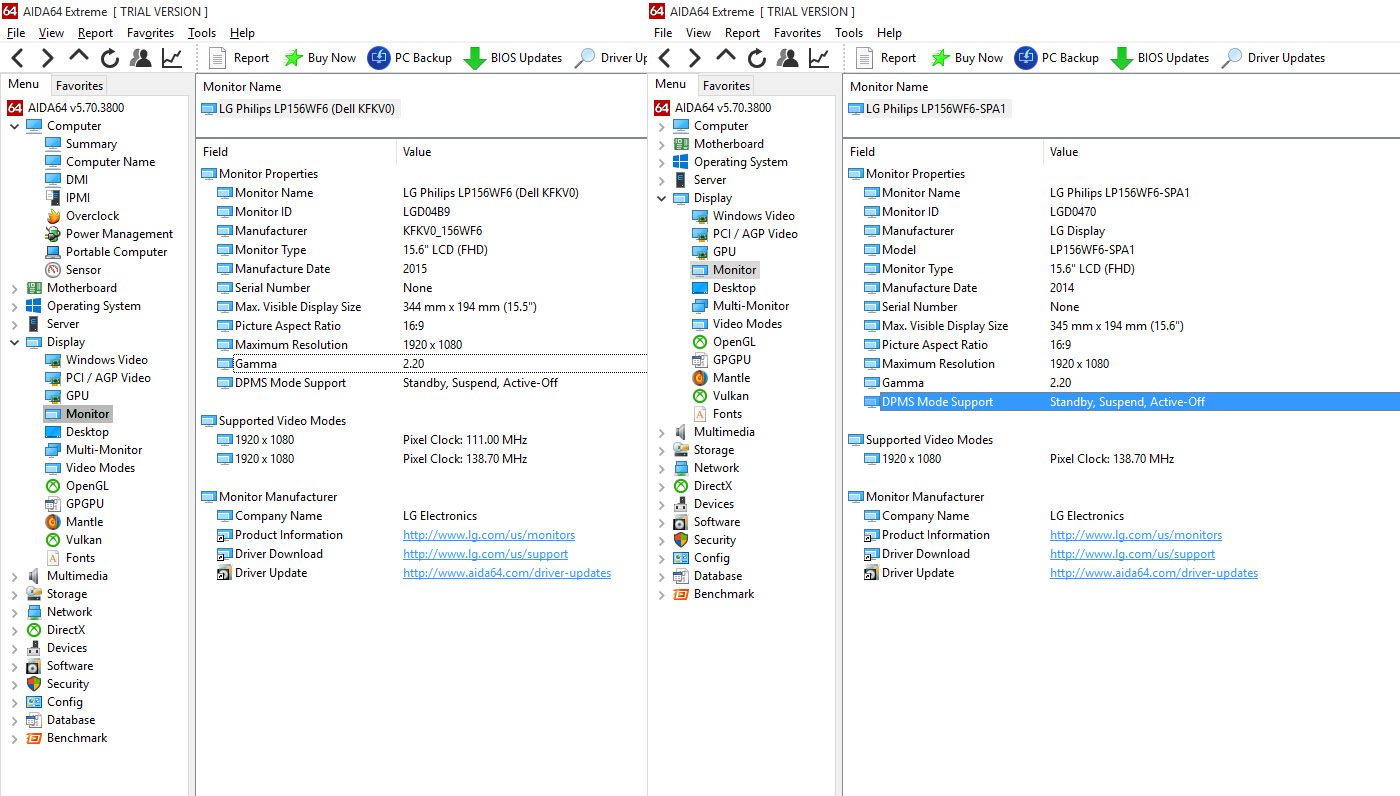

    A Dell Technician just came by and replaced my Samsung 156HL "4NDDJ" with a LG 156WF6 "KFKV0". The difference in warmness of the colors is stunning, and the LG appears to be brighter as well.

    http://imgur.com/a/waBmT
    [​IMG]

    Jesus--, Aug 26, 2016
    #316
  17. rinneh

    rinneh Notebook Prophet

    Reputations:
    854
    Messages:
    4,897
    Likes Received:
    2,191
    Trophy Points:
    231
    Thats not even a great panel they replaced it with tbh. That is the 220~250nits LG. You need to calibrate it to get some better colors out of it.

    rinneh, Aug 26, 2016
    #317
  18. SpyCracker

    SpyCracker Notebook Geek

    Reputations:
    1
    Messages:
    92
    Likes Received:
    13
    Trophy Points:
    16
    Anybody is able to get LG LP156WF6-SPA1 in Canada? none on ebay, laptopscreen. c o m offers B156HAN04.0 by AUO which is bad.

    SpyCracker, Jan 20, 2017
    #318
  19. Crix

    Crix Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    1
    Trophy Points:
    6
    Crix, Mar 19, 2017
    #319
    SpyCracker likes this.
  20. Spunky424

    Spunky424 Notebook Consultant

    Reputations:
    14
    Messages:
    228
    Likes Received:
    11
    Trophy Points:
    31
    was this an authentic screen with exact part number? not an equivalent replacement?

    Spunky424, Apr 9, 2017
    #320
  21. Crix

    Crix Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    1
    Trophy Points:
    6
    [​IMG]

    Crix, Apr 9, 2017
    #321
