    AW 15 R3 / Aw 17 R4 BIOS 1.0.9

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Game7a1, Jan 5, 2017.

  1. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41

    Right!

    I have the same result like LeeLoyd :

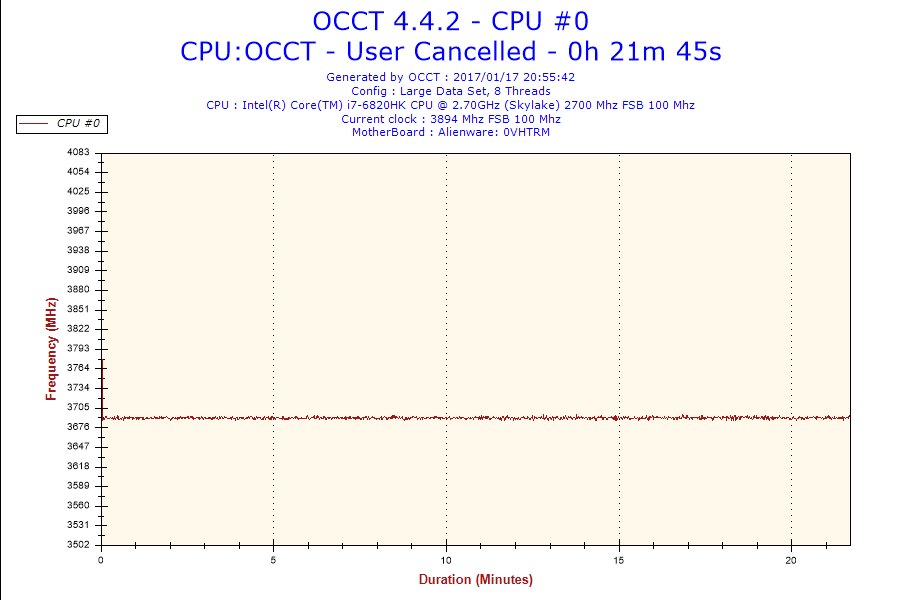

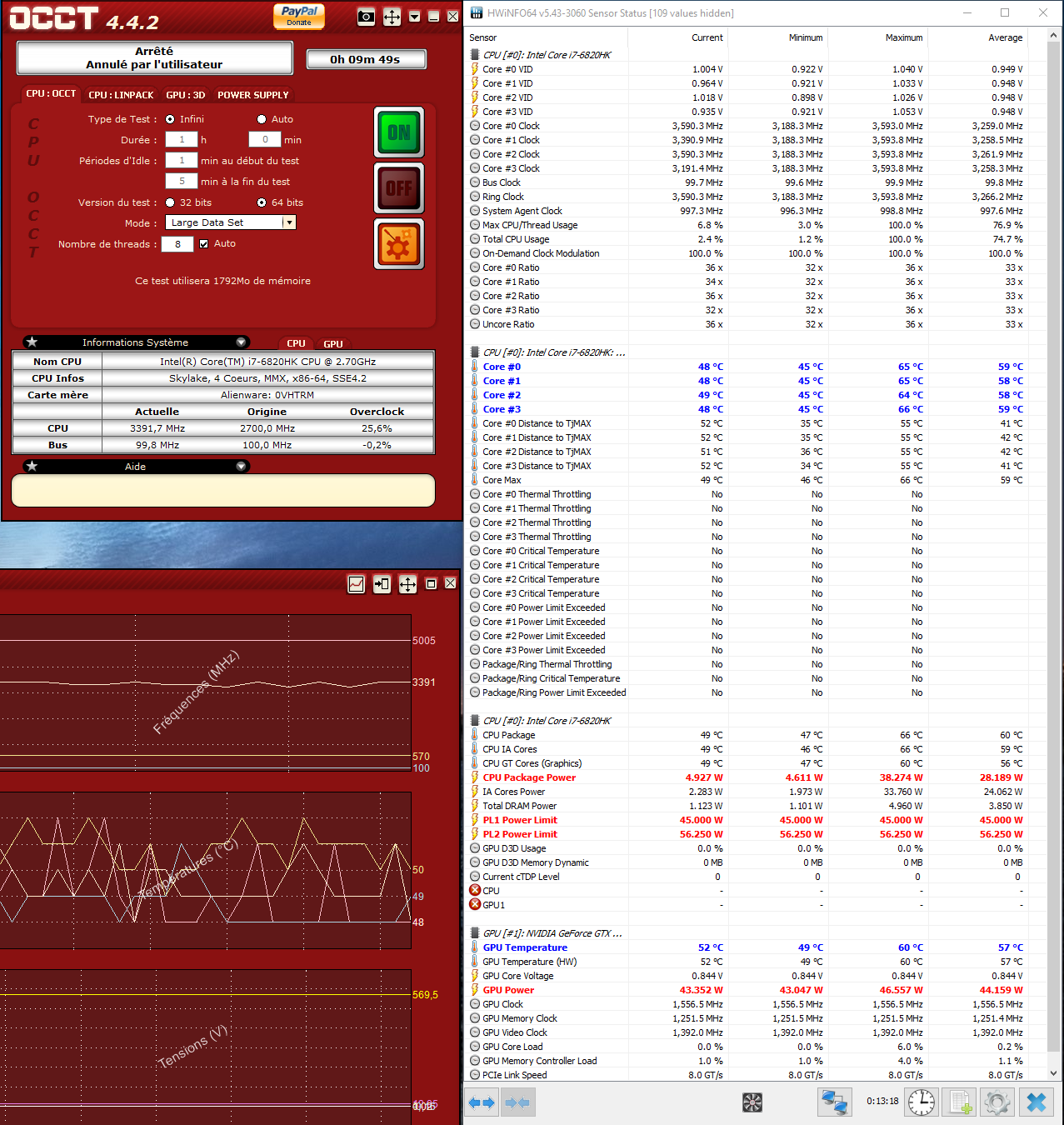

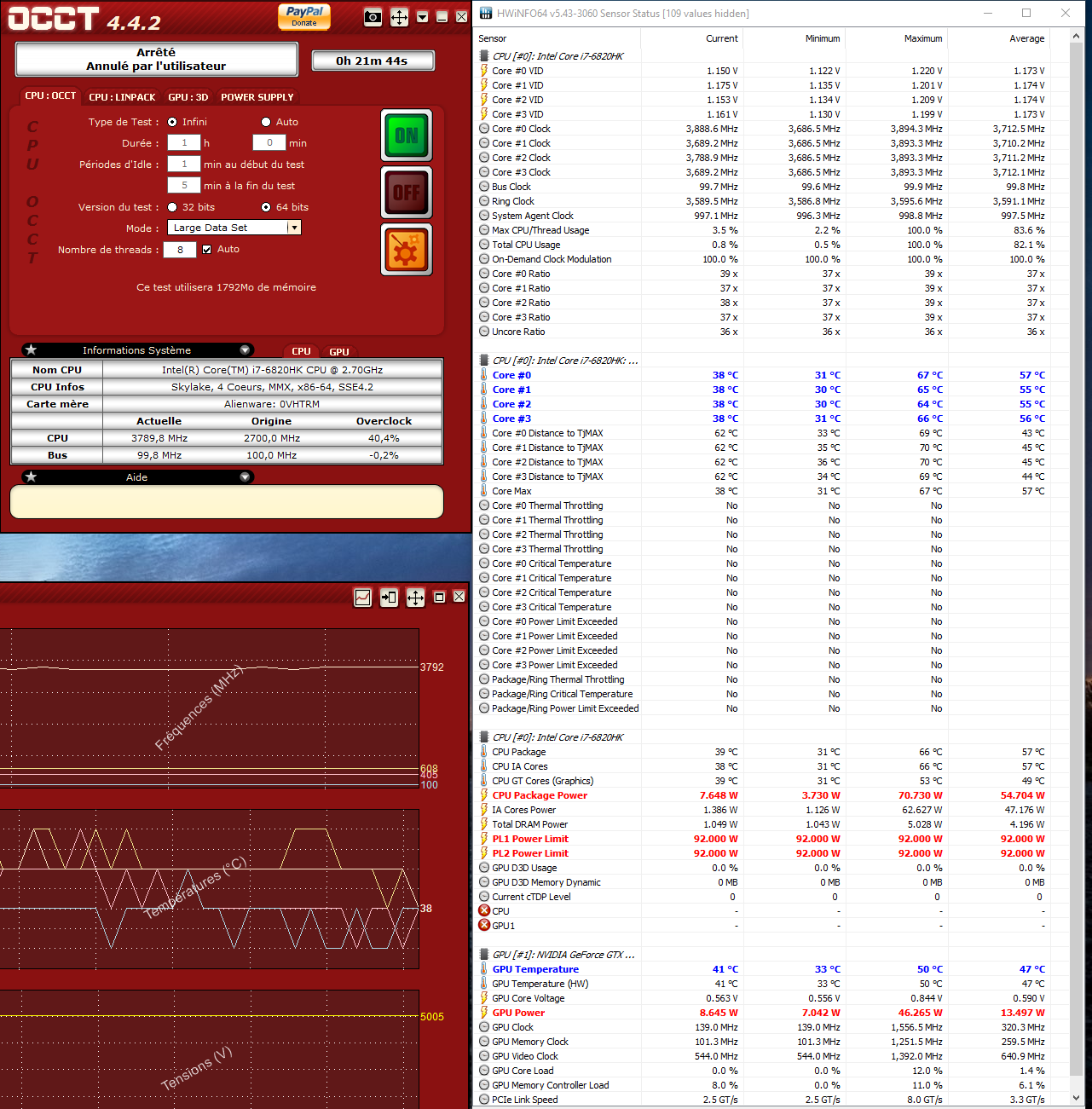

    Test 1 : Bios 1.0.2 : OC1 (in Bios) no undervolt :

    [​IMG]

    [​IMG]

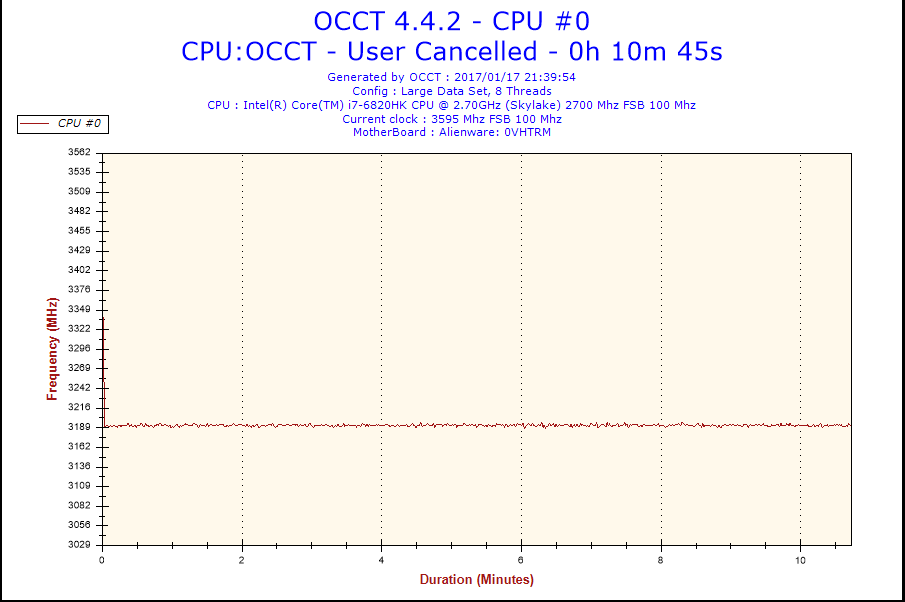

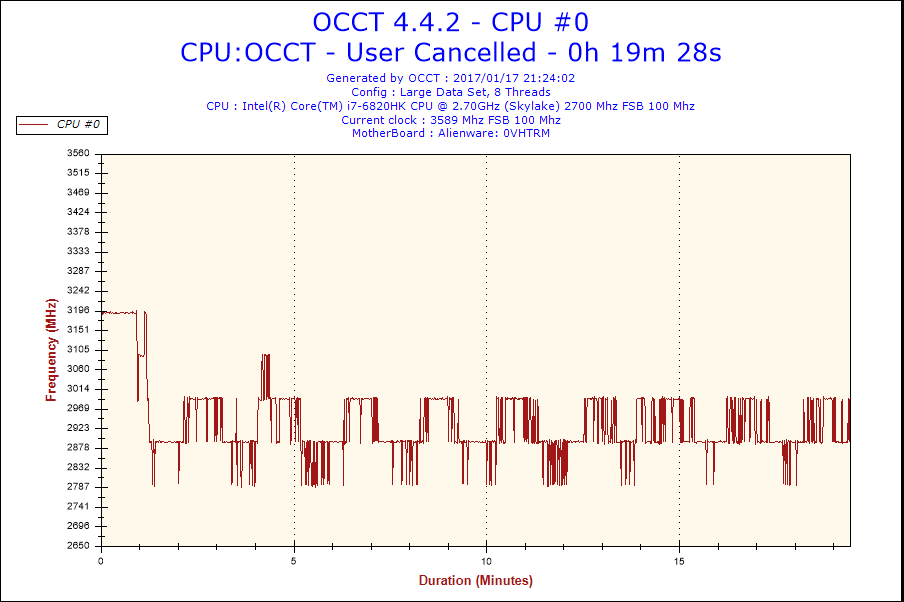

    Test 2 : Bios 1.0.2 : No OC (stock) / No Undervolt :

    [​IMG]
    [​IMG]

    TEST 3 : Bios 1.0.2 : No OC (stock) / Undervolt -160mv :

    [​IMG]

    [​IMG]


    I confirm that a mechanism prevents overheating in stock mode whatever one does.

    I hope that Dell, with Franck Azor's announcement on twitter cancel this system because when i seeing my temperatures I find this limitation is useless in stock mode :(


    sarou, Jan 19, 2017
    #51
  2. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    Thanks mobius, did you have any more information on the type of the limit and what it was before and what it is now?

    Sent from my SM-G935F using Tapatalk

    Pete Light, Jan 19, 2017
    #52
  3. leeloyd

    leeloyd Notebook Consultant

    Reputations:
    86
    Messages:
    257
    Likes Received:
    206
    Trophy Points:
    56
    Defaults Power limits are PL1 @45000mW and PL2 @56250mW, I think the issue was even when you set them both to 100000mW in Bios settings, PL1 reverted back to 45W as soon as Windows starts. And you had to use XTU again to set PL1 to 100W.

    leeloyd, Jan 19, 2017
    #53
  4. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    45 indefinite 55 short is the stock intel values

    Mobius 1, Jan 19, 2017
    #54
    Pete Light and el_pitaya like this.
