    17R4 touchpad not working

    Discussion in '2015+ Alienware 13 / 15 / 17' started by eadgar, Jun 15, 2017.

  1. eadgar

    eadgar Notebook Consultant

    Reputations:
    6
    Messages:
    135
    Likes Received:
    28
    Trophy Points:
    41
    The touchpad isn't working at all. Neither the buttons nor the backlighting.

    Tried both Dell's and Synaptics' drivers, but no luck.
    Tried pressing Fn+F11, but nothing happens.
    Tried reseating all the ribbon cables, but nothing.

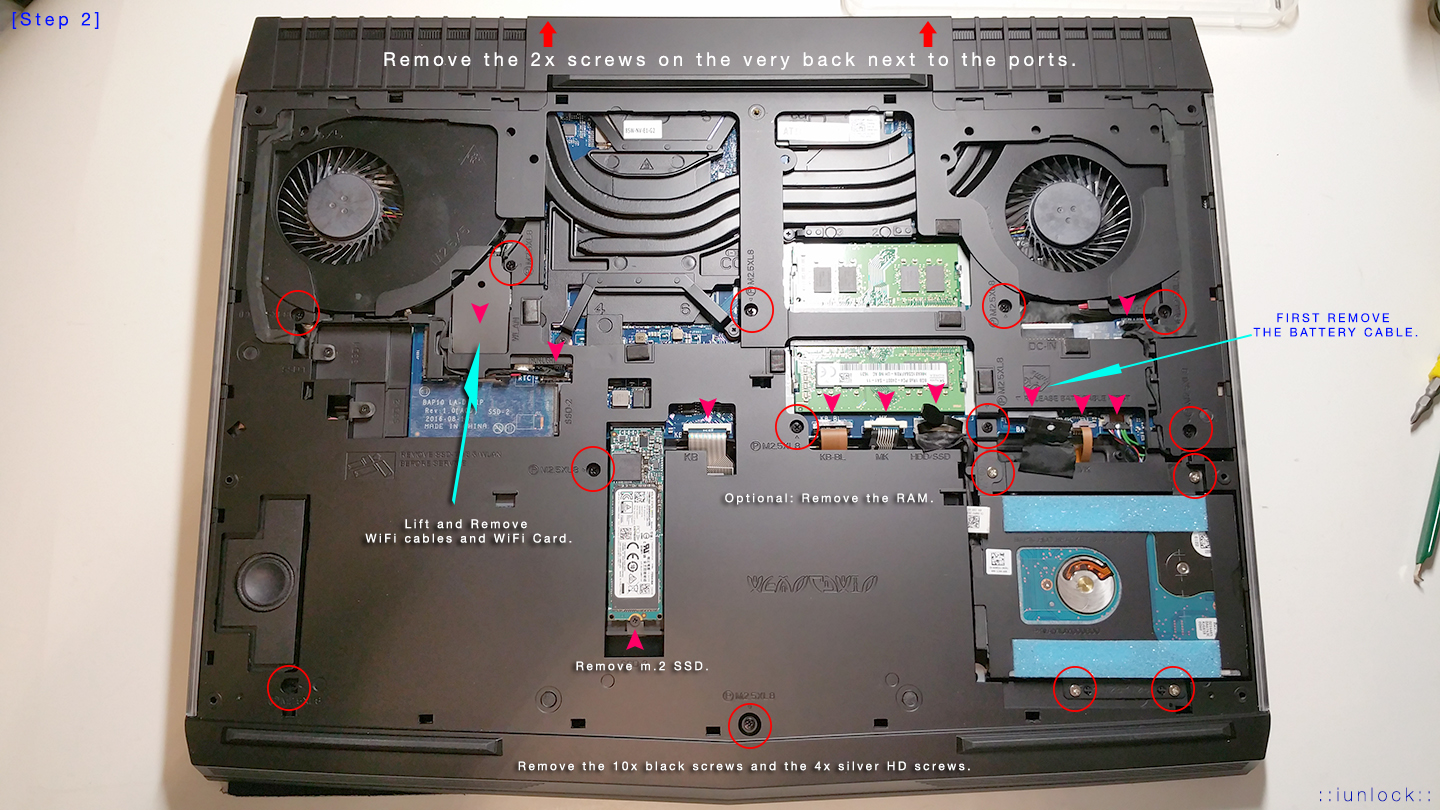

    Which of the ribbon cables is actually the touchpad one (iunlock's image)? There are several marked with KB.
    [​IMG]

    Any ideas what might be wrong?

    I should say that I think it stopped working after I repasted, but I can't think of anything that I might have messed up in the process. :\

    Last edited: Jun 15, 2017
    eadgar, Jun 15, 2017
    #1
  2. eadgar

    eadgar Notebook Consultant

    Reputations:
    6
    Messages:
    135
    Likes Received:
    28
    Trophy Points:
    41
    eadgar, Jun 15, 2017
    #2
    Vasudev likes this.
  3. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16

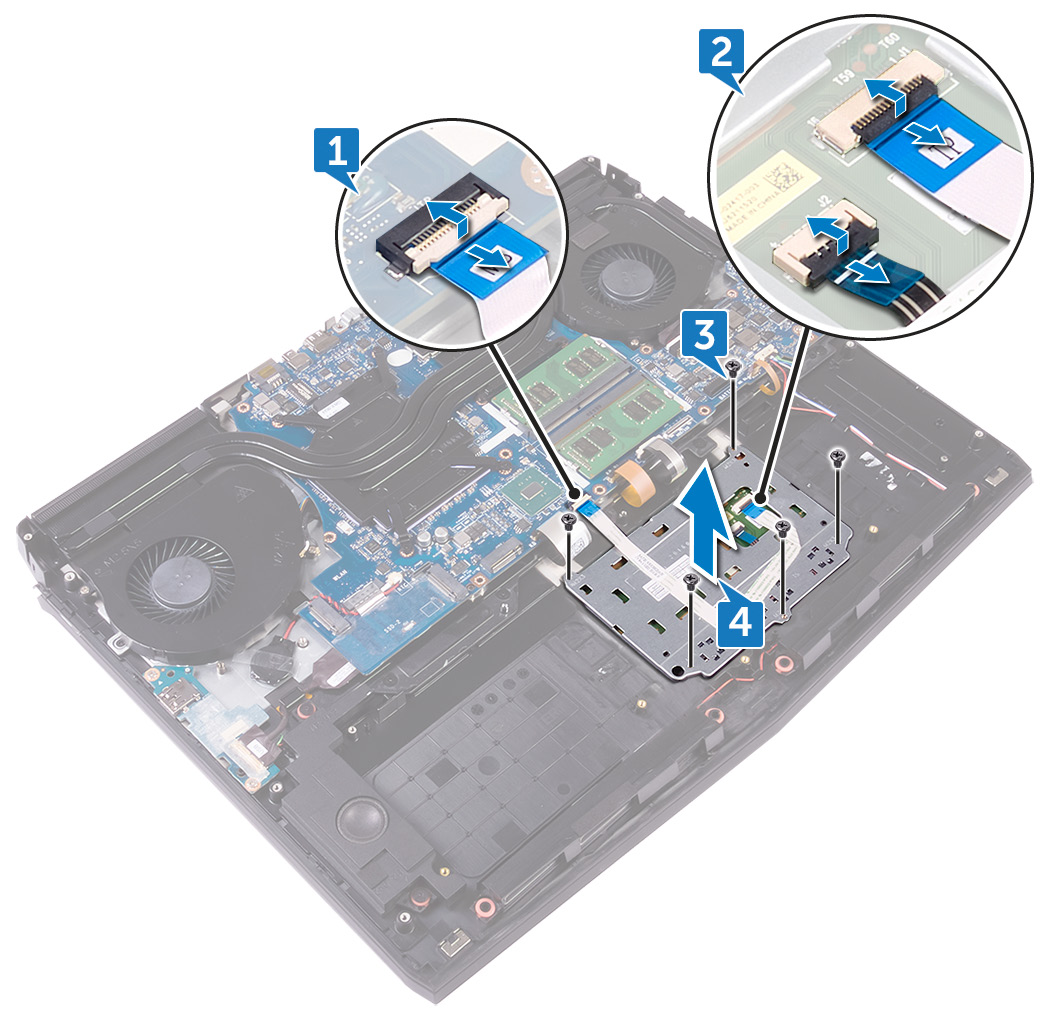

    The one on the motherboard! I forgot that one too haha! Easy mistake to make

    Sent from my SM-G935F using Tapatalk

    Djommar, Jun 15, 2017
    #3
  4. eadgar

    eadgar Notebook Consultant

    Reputations:
    6
    Messages:
    135
    Likes Received:
    28
    Trophy Points:
    41

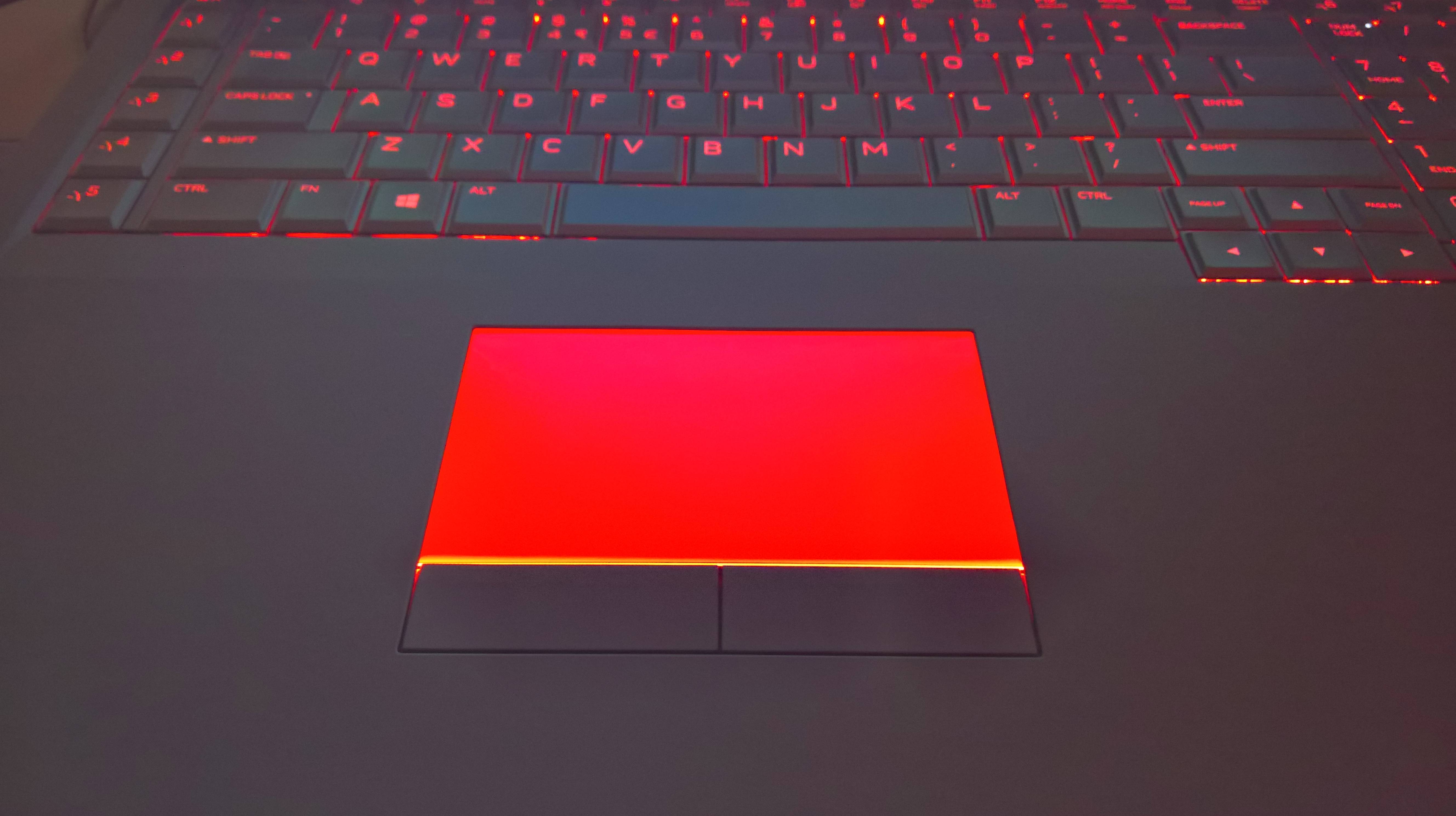

    Just like I thought, all is well now...

    [​IMG]

    eadgar, Jun 18, 2017
    #4
    Djommar and MogRules like this.
  5. MogRules

    MogRules Notebook Deity

    Reputations:
    1,228
    Messages:
    1,649
    Likes Received:
    973
    Trophy Points:
    131
    Yep we have all probably done it :p

    It's really easy to pin a cable under the board when you reinstall it and not notice.

    MogRules, Jun 18, 2017
