    10 months of liquid metal [pic]

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Mobius 1, Jun 17, 2017.

  1. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Just sharing a picture I took when repasting my GTX1080 AMP after 10 months of heavy use.


    This is a desktop GPU that has a TDP limit of 278w and regularly hovers at 200w when gaming.


    There has been no temp degradation since day one, 24c ambient and 55-58c load temps.

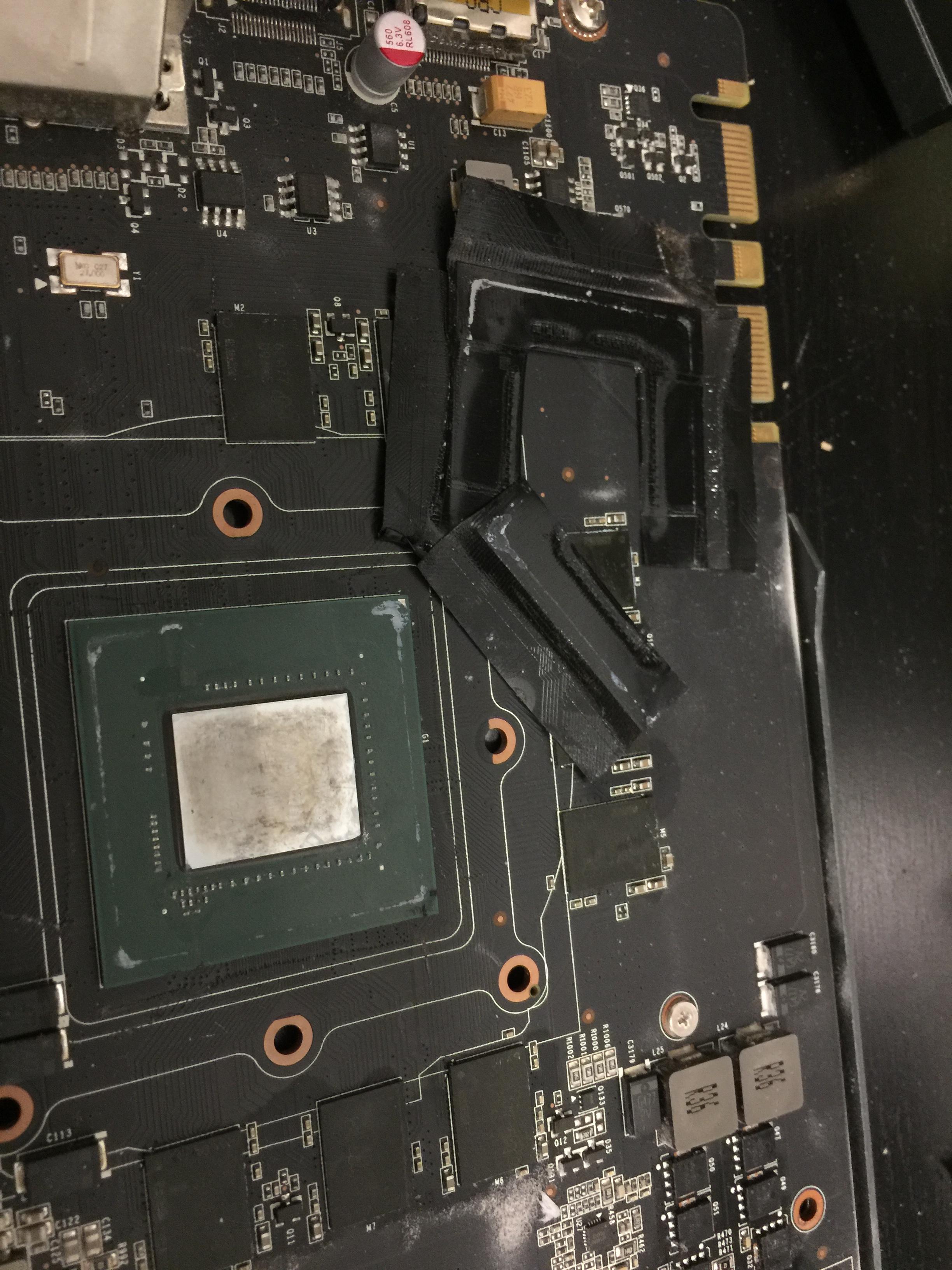

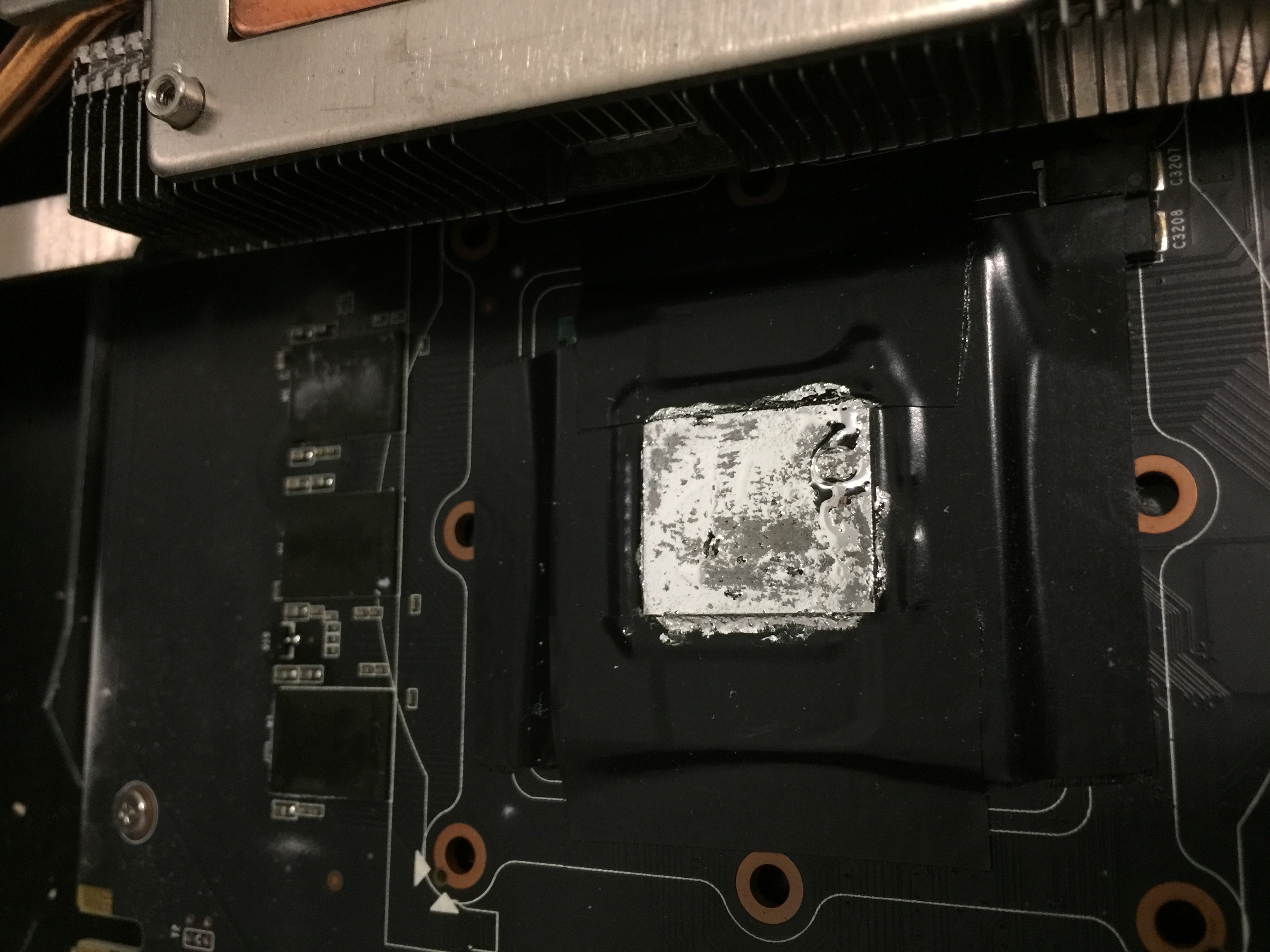

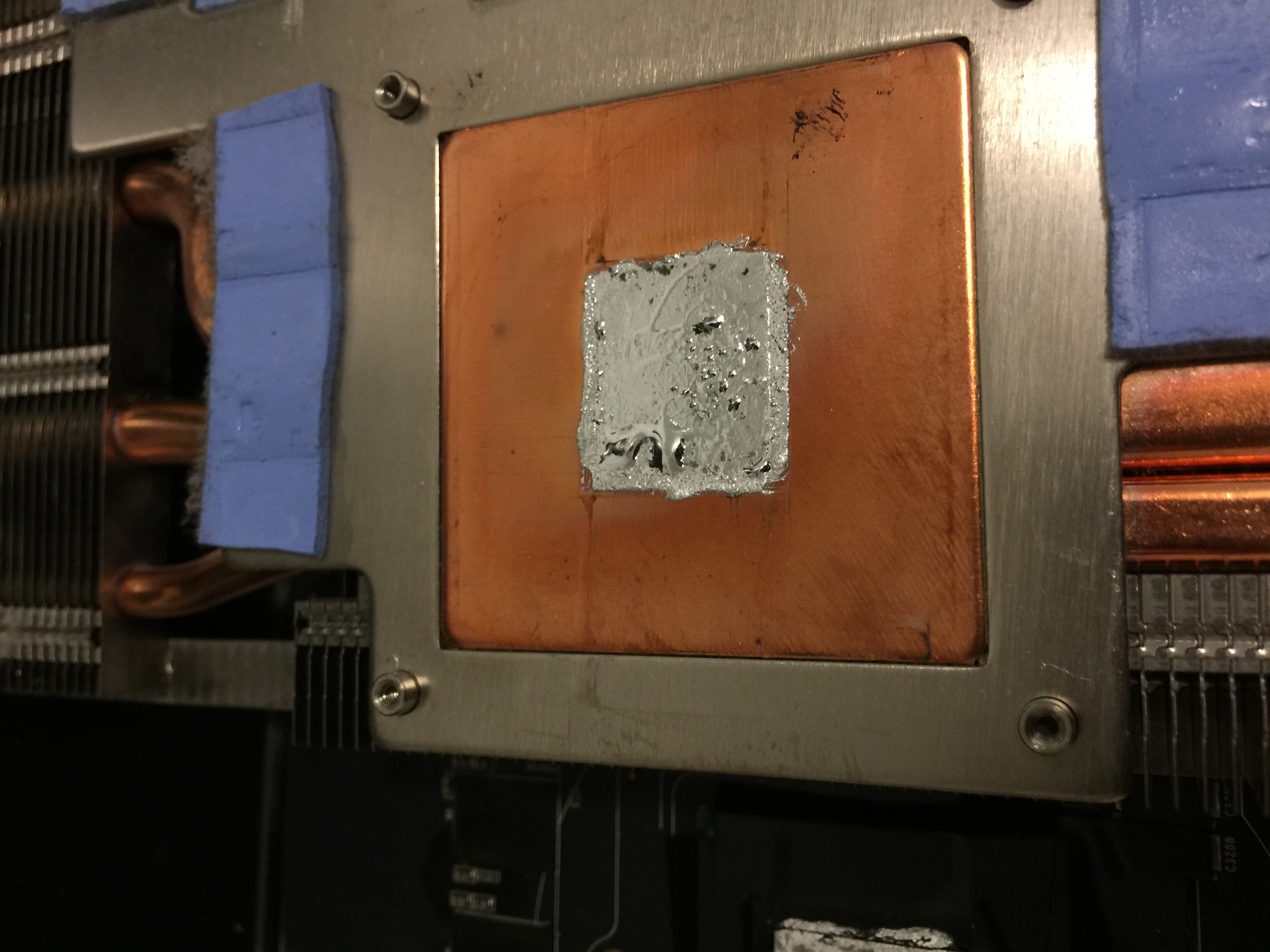

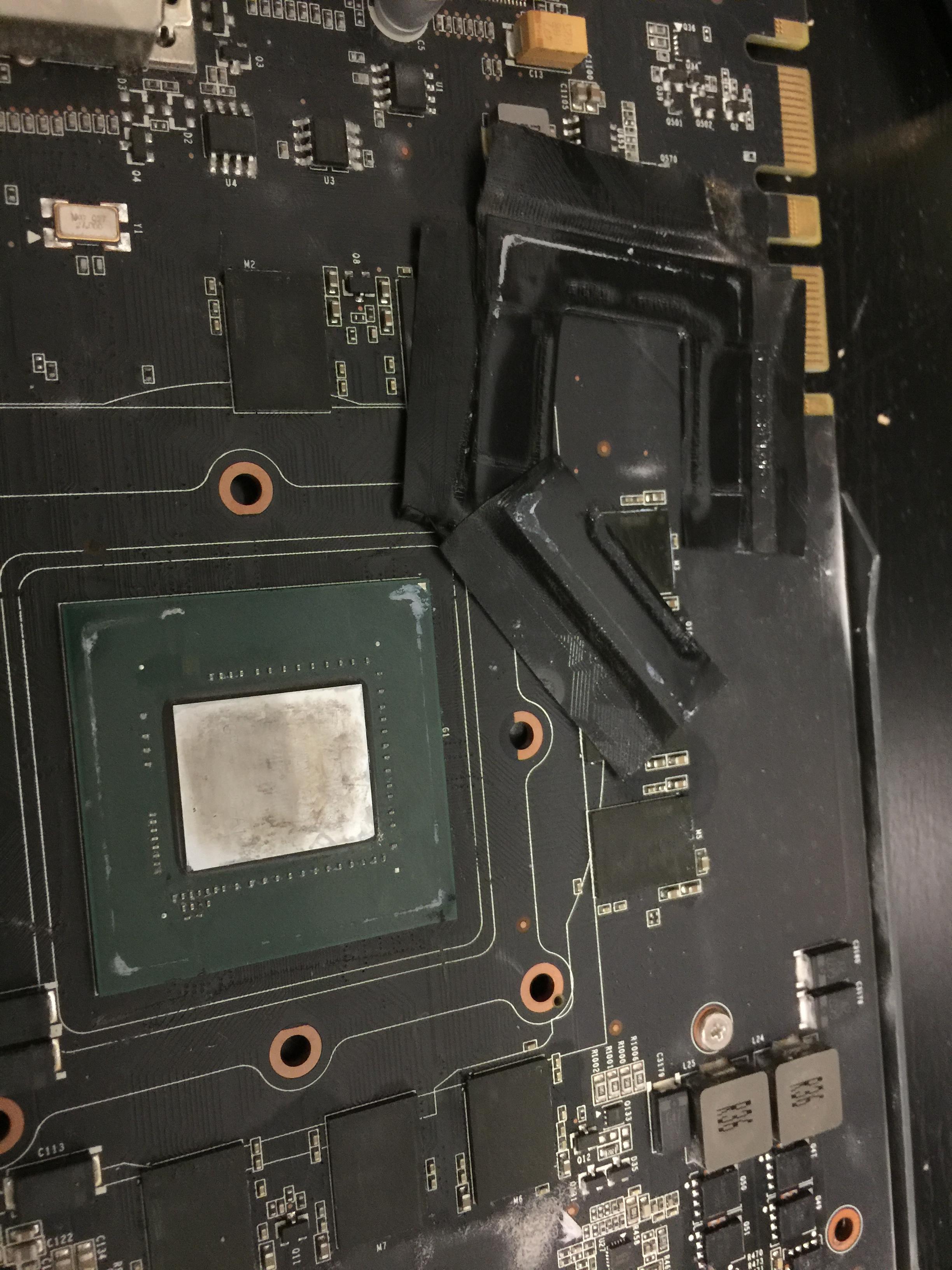

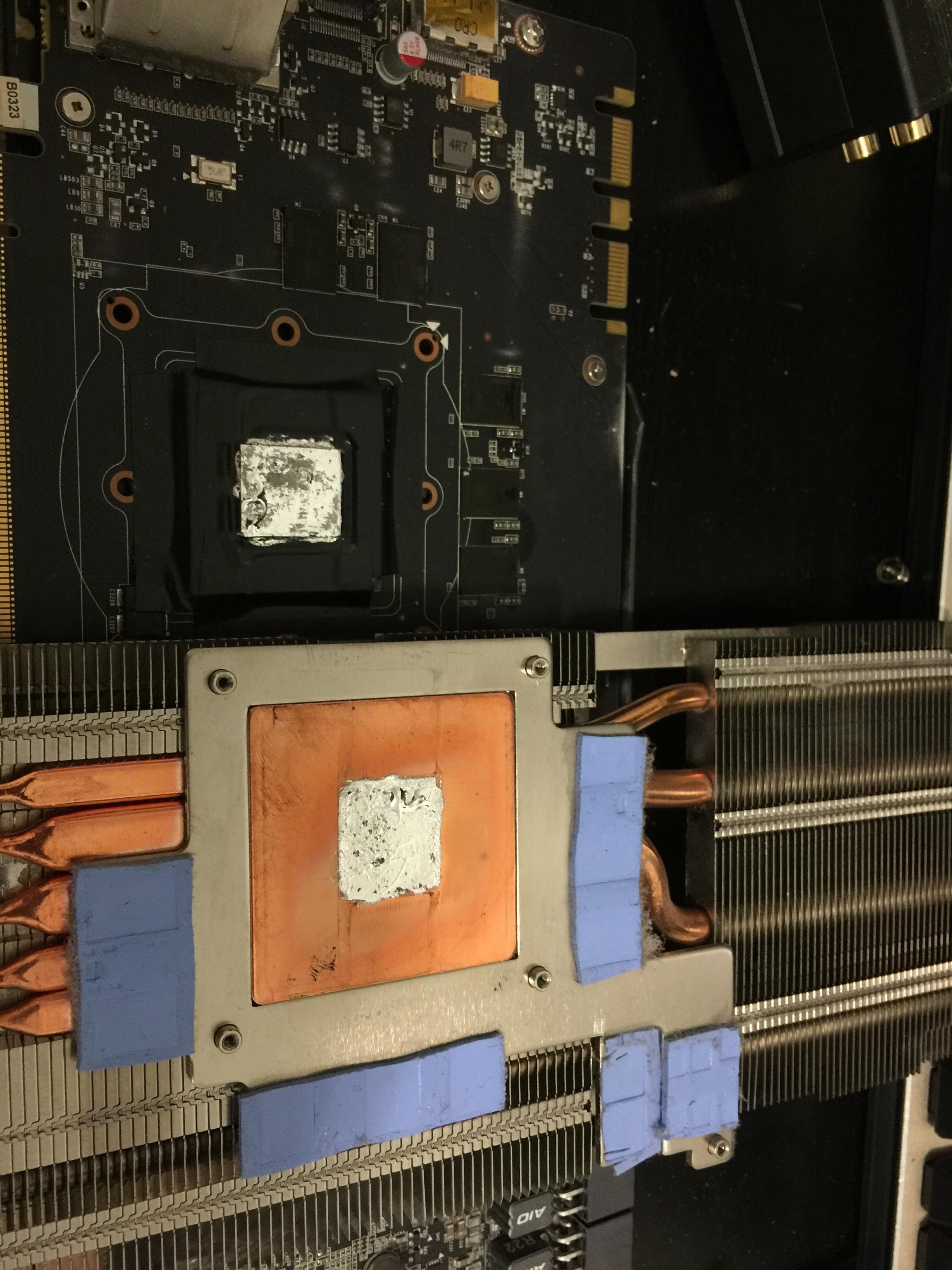

    Removal.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

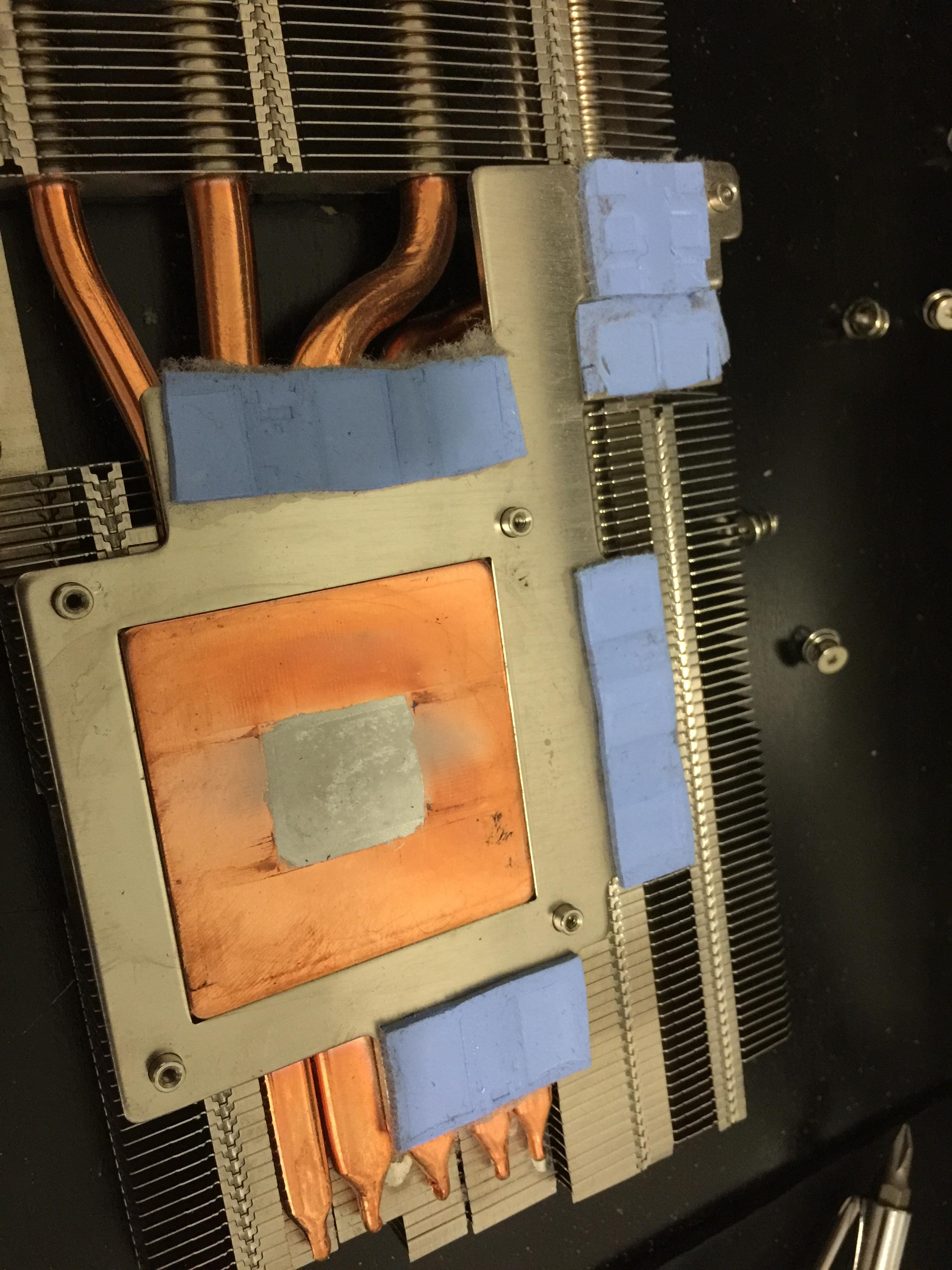

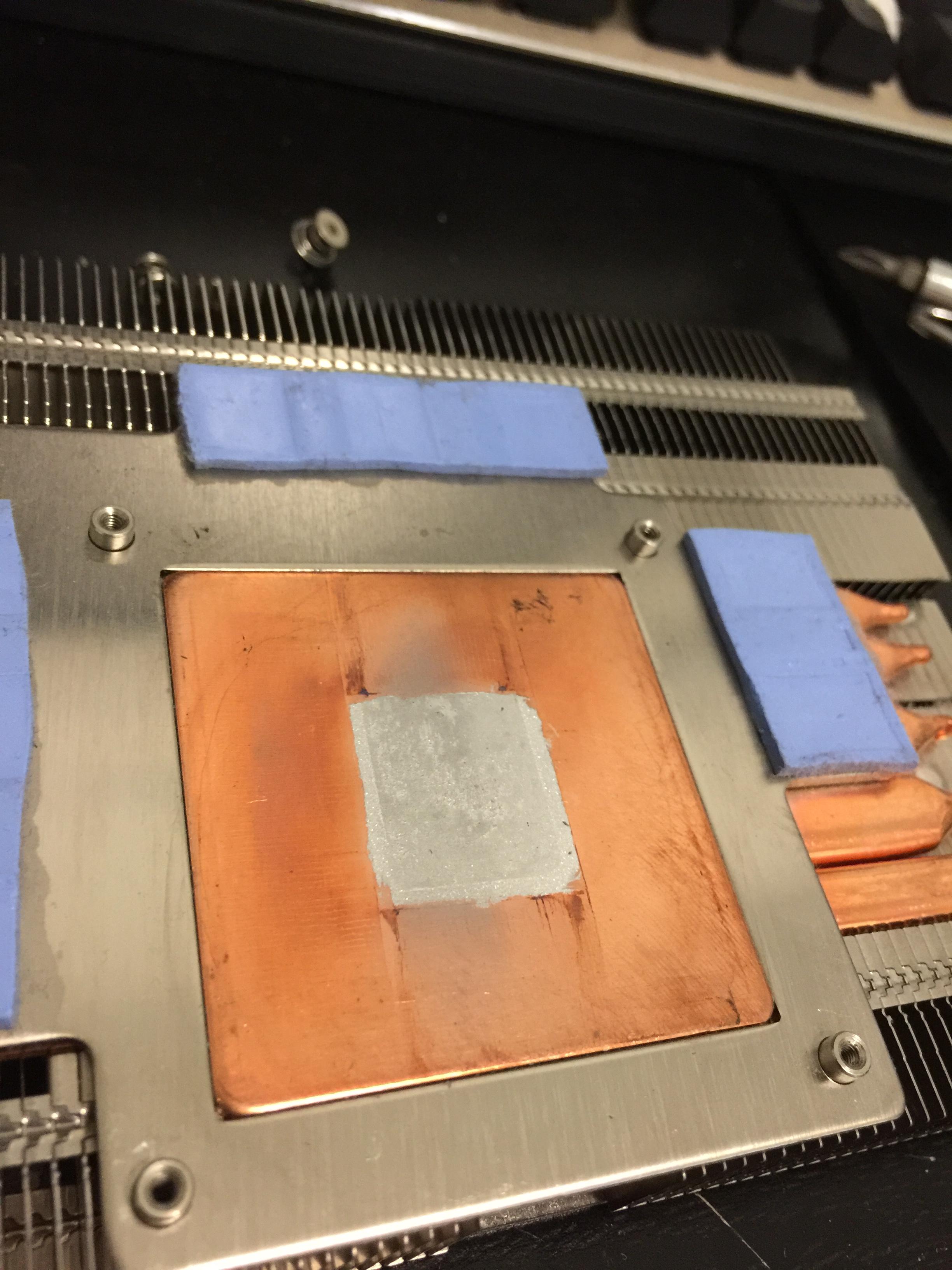

    After removal of liquid metal, you can see that the copper has been permeated and the liquid metal bonds over time.

    This means that the thermal contact is better the longer you let the liquid metal stay there.

    The heatsink has been scratched lightly with high grit sandpaper, ensuring better liquid metal retention.

    [​IMG]

    [​IMG]

    Mobius 1, Jun 17, 2017
    #1
    Papusan, SimplyJ3sse, Vistar Shook and 3 others like this.
  2. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,050
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    @Mobius 1: Well, how did some portion of LM leave the die? That Tape sure was a life-saver, right?

    Vasudev, Jun 17, 2017
    #2
    Vistar Shook likes this.
  3. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    applied a lot more than I should, just for an experiment

    Mobius 1, Jun 17, 2017
    #3
    Papusan and Vasudev like this.
  4. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    Same...have had no issues with Grizzly Conductonaut.

    iunlock, Jun 17, 2017
    #4
