    [Alienware 17R4 / 15R3] - Disassembly + Repaste Guide + Results

    Discussion in '2015+ Alienware 13 / 15 / 17' started by iunlock, Oct 22, 2016.

  1. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:

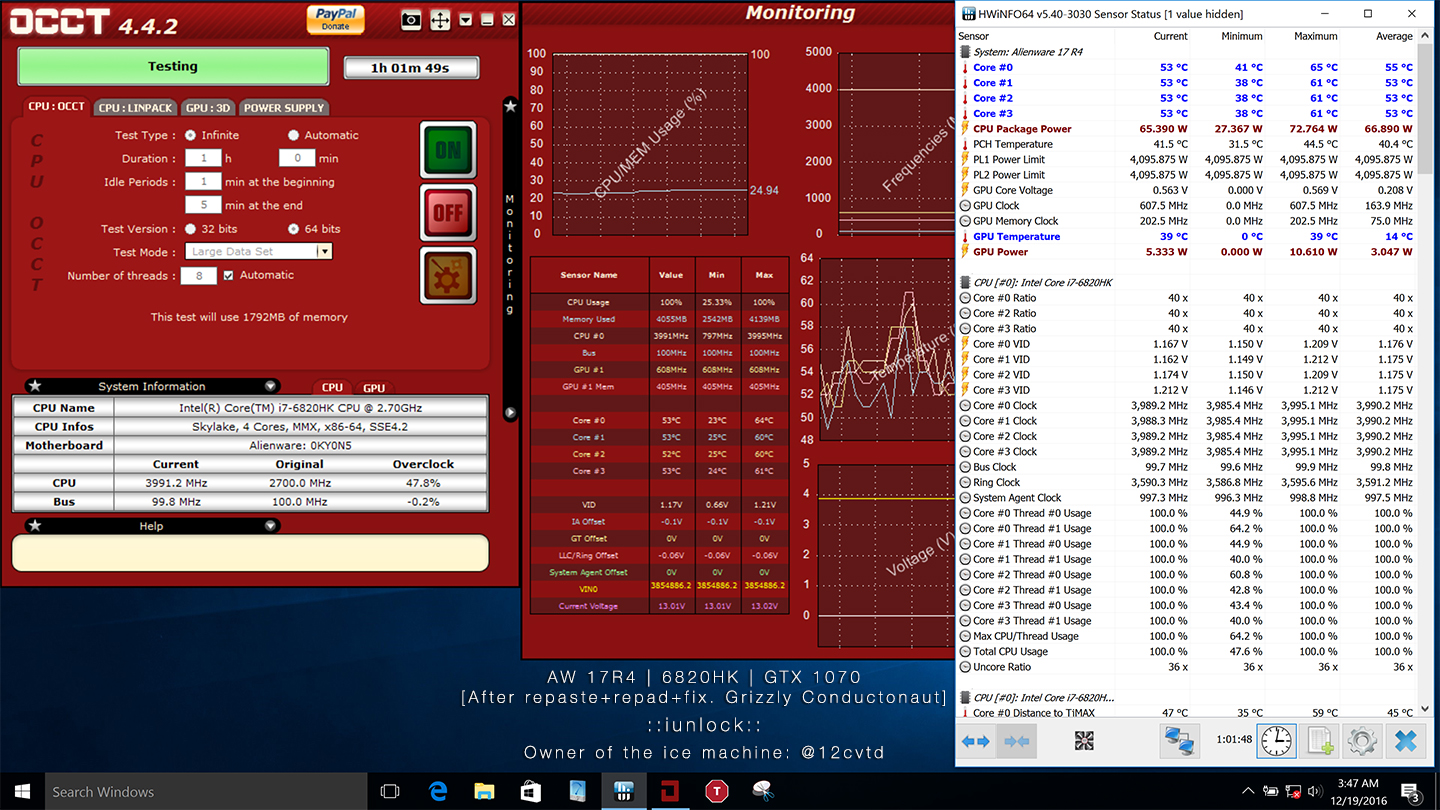

    581
    You're pulling my leg right? Haha...

    Just in case, that is after a repaste (Grizzly Conductonaut+Repad+Custom HS Mod+HS Fix)

    Please tell me you're joking lol....it's clearly stated on the screen shot. There's no way stock paste would pull those numbers.

    Papusan and Johnni3 like this.
  2. raiden87

    raiden87 Notebook Evangelist

    Reputations:
    46
    Messages:
    341
    Likes Received:
    123
    Trophy Points:
    56
    Haha :D nooooo i meant the pads, not the repaste!
    In other words: what's the difference between pads height on 15/17?

    I don't want to get on ur nerves :D I just ask because I want to repad and only saw the 17 pic in OP.

  3. dark-scion

    dark-scion Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    5
    Trophy Points:
    6
    @iunlock

    I travel a lot and bring my laptop with backpack.

    Isn't it dangerous if I repaste my laptop with Liquid Metal?
    from what i've read liquid metal doesn't dissolve.

    also about how long will the liquid metal lasts? and needed to repaste again?

    Last edited: Dec 18, 2016
  4. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    It will last as long as you don't remove the heatsink. Basically the whole lifetime of the laptop.

  5. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,599
    Trophy Points:
    931
    All depends if the heatsink sits flush on the die.

  6. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    If it doesn't just send it back for replacement.

    Papusan likes this.
  7. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,599
    Trophy Points:
    931
    Or for refund :)

  8. CSHawkeye81

    CSHawkeye81 Notebook Deity

    Reputations:
    194
    Messages:
    1,596
    Likes Received:
    175
    Trophy Points:
    81
    Just took about an Alienware 15R3 From the Outlet. It came with Bios 1.06 as well.


  9. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    Yes as mentioned, the most important thing is to have your HS sit flush with the CPU die. I travel 1-2 times a month, and my laptop always sits vertical in my briefcase bag. Heck, even my MBP is LM'ed and sits vertical as well haha. Never had an issue. Just make sure not to use too much and with the newer units, it should be flush enough to not be an issue.

    Either the donkeys were too lazy to flash it to 1.0.8, which is ok btw as I've tested it more with some tweaks.... or 1.0.6 was kept on there on purpose due to the thermal throttling.

  10. Ryan Melling

    Ryan Melling Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    6
    Hi all again, From my previous post and from what some folks had said regarding my temps after re-pasting and following iunlock's tutorial on how to do it ;)

    When i added the (Grizzly Conductonaut it sent the Package Sensor off the scale and when i installed HWiNFO64 it picked up that the sensor was not working, but the GPU and CPU were fine. Anyway, I was happy with the Average Temps i was achieving and just how fast the temps came down when the fans came in at full spin.

    After having a lovely conversation with captn.ko and his take on what temps should be ... o_O I decided to strip the lappy down again and redo with ArticSilver Paste. I was surprised at the results, the Package Sensor started working again and the temps were even better than before. I installed HWiNFO64 to try and replicate results as to what other people are using. I have never been one for posting on here before i started this little journey but anyways my results.. :)

    Results from running 3D mark Time Spy with ArticSilver and another pic of the highest temps during the benchmark

    https://flic.kr/p/QmDQZv
    https://flic.kr/p/QijZxu

    Then i did what iunlock did which was play a game for 30 odd minutes and using HWiNFO64 show my results (BF1 on ultra settings - see previous post for on screen settings)

    This is stock CPU and GPU playing for 46 minutes
    https://flic.kr/p/QmDR6x

    This is with the CPU in the Bios set to performance and Fans set to Enable and GPU as stock playing for 36 minutes. Please note i have the Alienware 17 r4 1070 with the i7 6700HQ chip.

    https://flic.kr/p/Q8EBBb

    So there you go i hope this as helped anyone. I am going to keep this laptop as is now and see how it goes :) :p also thanks to iunlock and OWNORDISOWN to bring this issue on Youtube regarding the Alienware heating.

    Ryan

    selvedge likes this.
  11. cuniac

    cuniac Notebook Guru

    Reputations:
    0
    Messages:
    58
    Likes Received:
    18
    Trophy Points:
    16
    iunlock, I just ordered a Alienware 17 R4 1080 and am very concerned about the temps after reading your post. I was looking over your instructions for re-doing the thermal paste and its honestly a little over whelming for me. I doubt your in Arizona for me to be able to pay you to do it for me lol. But do you have any advice or suggestions for someone like myself who is just very worried they are going to mess something up?

    I Also saw during OWNORDISOWN youtube interview that you said you offer a service to do this, but I didn't hear information on how to get that. I am interesting in this, what would I have to do?

    Last edited: Dec 19, 2016
  12. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    Hello,

    Please PM me. Thanks.

  13. cuniac

    cuniac Notebook Guru

    Reputations:
    0
    Messages:
    58
    Likes Received:
    18
    Trophy Points:
    16
    How can I PM it to you, I dont see an option for some reason

  14. Bones13

    Bones13 Notebook Guru

    Reputations:
    7
    Messages:
    60
    Likes Received:
    17
    Trophy Points:
    16
    You need more posts to enable PM. And it is called "start a conversation" when you click on someone's avatar (picture, top left of the post)

  15. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    Just finished up this 17R4 and here's the 1 Hour OCCT run.

    Repaste+Repad+Custom HS Mod+Fix

    Max: 55, 52, 53, 52


    Current: 47, 47, 47, 47

    Avg: 49, 46, 47, 47


    [​IMG]

    djfergi likes this.
  16. lobuz

    lobuz Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    1
    Trophy Points:
    6
  17. Xenrail

    Xenrail Notebook Consultant

    Reputations:
    0
    Messages:
    209
    Likes Received:
    73
    Trophy Points:
    41
    That's neat, how did you change hwinfo's font color for CPU/GPU temps?

  18. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
  19. Cobra99

    Cobra99 Notebook Consultant

    Reputations:
    19
    Messages:
    181
    Likes Received:
    30
    Trophy Points:
    41
    @iunlock what bios are these on?

    Can you explain?
    Repaste+Repad <----I get this
    Custom HS Mod<---is this the arm bend
    Fix<-----or is this

    Pete Light likes this.
  20. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    1.0.2 is best


    Repaste = change thermal conductor compound on the CPU and GPU die

    Repad = change thermal conductor pad on the power delivery circuitry and video RAM/vRAM

    HS mod = change GTX1070 heatsink to a GTX1080 one (this is not finalized yet)

    Fix = bend arm + several other things to provide better contact to the CPU/GPU silicon

    Pete Light likes this.
  21. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    That's the same question I had mobius thanks for that!
    What's the bend several other things? Far as I could see on the guide it's only the arm?
    Cheers,
    Pete

  22. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    17R4 and here's the 1 Hour OCCT run at 40x.
    (The one posted before was OC'ed to stock boost clocks at 36x.)

    Repaste+Repad+Custom HS Mod+Fix

    Max: 65, 61, 61, 61


    Current: 53, 53, 53, 53

    Avg: 55, 53, 53, 53

    [​IMG]

    Last edited: Dec 20, 2016
  23. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    all of the arm but top one in particular

    Pete Light likes this.
  24. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,599
    Trophy Points:
    931
    I didn't know 6820 had 36X stock clocks all 4 cores :D

  25. nravanelli

    nravanelli Notebook Enthusiast

    Reputations:
    17
    Messages:
    35
    Likes Received:
    37
    Trophy Points:
    26
    My support to the efforts to help others achieve thermal bliss; tutorial on how to disassemble and repaste the Alienware 15 R3 :)

    Apologies for the poor audio, didn't have my mic and used the laptop mic on the AW15R3... not bad but not super great.


    leeloyd, SimplyJ3sse and selvedge like this.
  26. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    Thanks for sharing mate. I take it this is the 6700HQ / 1060 eh?

    Also, would you be so kind to post up your temps? (HWiNFO64)

    Run OCCT for at least 1 Hour and make sure that your power limits are unlocked so that it's not being capped running ~45w...

    Thanks!

  27. el_pitaya

    el_pitaya Notebook Consultant

    Reputations:
    29
    Messages:
    216
    Likes Received:
    1
    Trophy Points:
    31
  28. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    el_pitaya likes this.
  29. el_pitaya

    el_pitaya Notebook Consultant

    Reputations:
    29
    Messages:
    216
    Likes Received:
    1
    Trophy Points:
    31
    Thanks! will use instead!

  30. nravanelli

    nravanelli Notebook Enthusiast

    Reputations:
    17
    Messages:
    35
    Likes Received:
    37
    Trophy Points:
    26
    Correct, AW15R3; i6700/1060
    I will run tomorrow :)

    I unfortunately have uneven core temps; just finished playing about 1.5 hrs of The Division and my CPU difference is 69-81C. Also, I feel as though the fans kick in a bit late as I have ran OCCT and initial temps reach 91C before fans blast. after about 20 minutes the highest read core is 82C.

    I am going to replace the kyronaut with conductonaut in the new year!

  31. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581
    Sounds great.

  32. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    Cheers buddy, can I just confirm you meant arms and not arm in your last message. I.e. All 3 arms need a bend but the top one needs slightly more?

    Any other heat saving tips other than the above and to use conductonaught and fujipoly pads? I.e. Tips when doing the work itself?

  33. nravanelli

    nravanelli Notebook Enthusiast

    Reputations:
    17
    Messages:
    35
    Likes Received:
    37
    Trophy Points:
    26
    Take your time... do not rush anything. Ideally, it should take ~1hr to complete. I recently posted a video if you want to follow along to for the 15R3. I tried to make it as easy and straightforward as possible.


    el_pitaya likes this.
  34. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Yes

    You can also save some money by using arctic thermal pads

  35. lokoroxbr

    lokoroxbr Notebook Consultant

    Reputations:
    20
    Messages:
    151
    Likes Received:
    40
    Trophy Points:
    41
    hello guys how are you? i saw the first post and i only have one question:

    can anyone post here the exactly products that i need to purchase for the repaste (only the necessary) and if im able to find them at amazon or ebay, because since im from Brazil, ill have to import then. Thanks

  36. Bones13

    Bones13 Notebook Guru

    Reputations:
    7
    Messages:
    60
    Likes Received:
    17
    Trophy Points:
    16
    He has a pretty good list of what you need next to both the 15 and 17 inch heatsink pictures. Conductonaut was not available on Amazon when I looked, but was easily found on Ebay. Read his post through a few times, and make your list.

  37. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    Thanks guys, also, obvious question I think but I assume you void the warranty and any on site premium support if you do the repaste?

  38. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,599
    Trophy Points:
    931
    No! Only if you re-paste with Liquid metal and tech discover it (if you send in your laptop to the depot for repair service)Clean and apply regular paste before service or repair.

    Pete Light and DeeX like this.
  39. el_pitaya

    el_pitaya Notebook Consultant

    Reputations:
    29
    Messages:
    216
    Likes Received:
    1
    Trophy Points:
    31
    Why the liquid metal breaks warranty?

  40. PMF

    PMF Notebook Consultant

    Reputations:
    19
    Messages:
    284
    Likes Received:
    251
    Trophy Points:
    76
    Apparently it is a somewhat toxic material, so the techs aren't allowed to work with it.

    el_pitaya likes this.
  41. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,599
    Trophy Points:
    931
    + Risk of leakage with fried hardware as a result. Limited what they would deal with. Spare Parts as new MB cost money :)

    el_pitaya likes this.
  42. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    Brilliant thanks guys I won't chuck away my old AS5 then

  43. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    Ok so moral of the story, make sure I'm happy with the rest of the laptop e.g.screen etc, before repasting with LM.

    Isn't there a warranty sticker I need to worry about or anything?

    Last edited: Dec 21, 2016
  44. iunlock

    iunlock 7980XE @ 5.4GHz

    Reputations:
    2,035
    Messages:
    4,533
    Likes Received:
    6,441
    Trophy Points:
    581

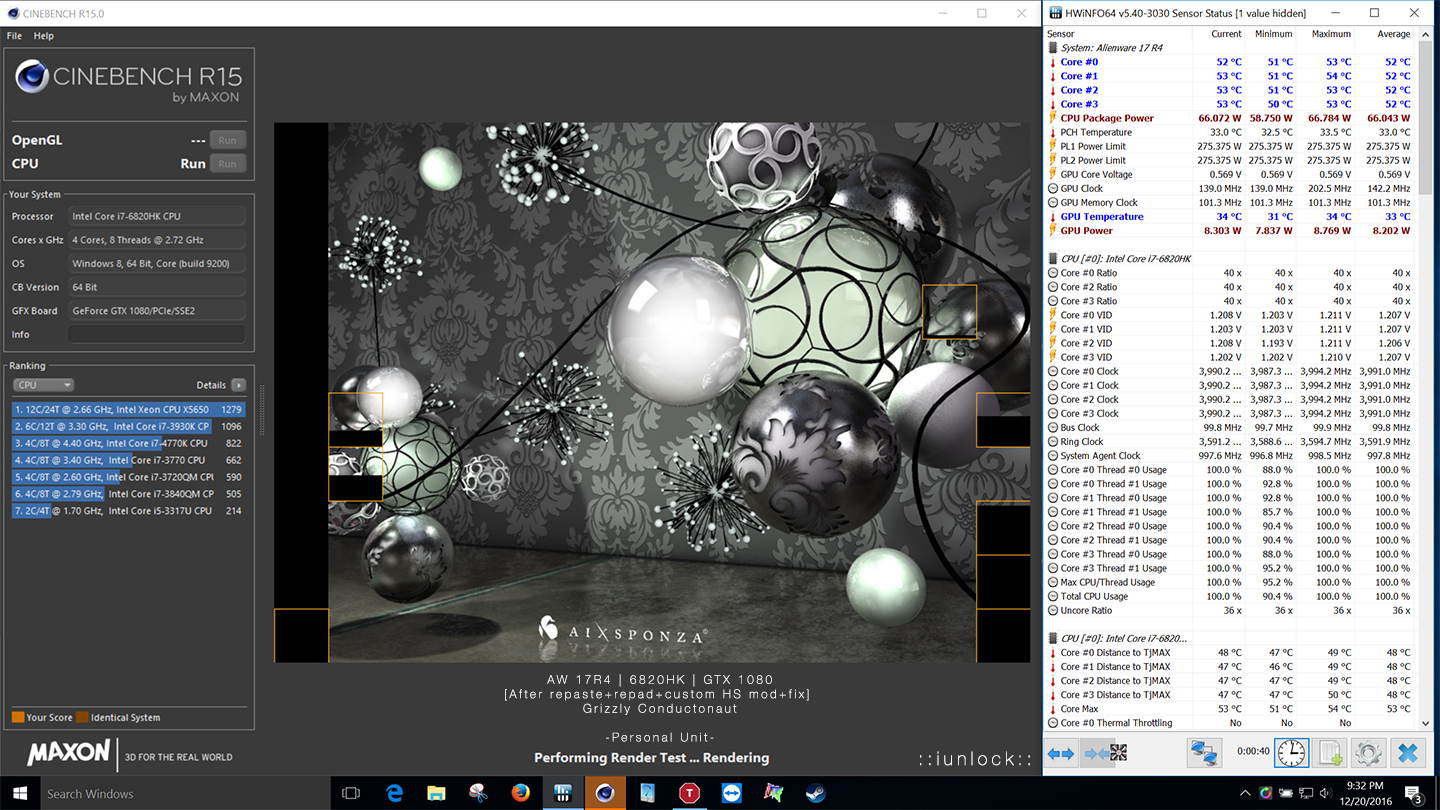

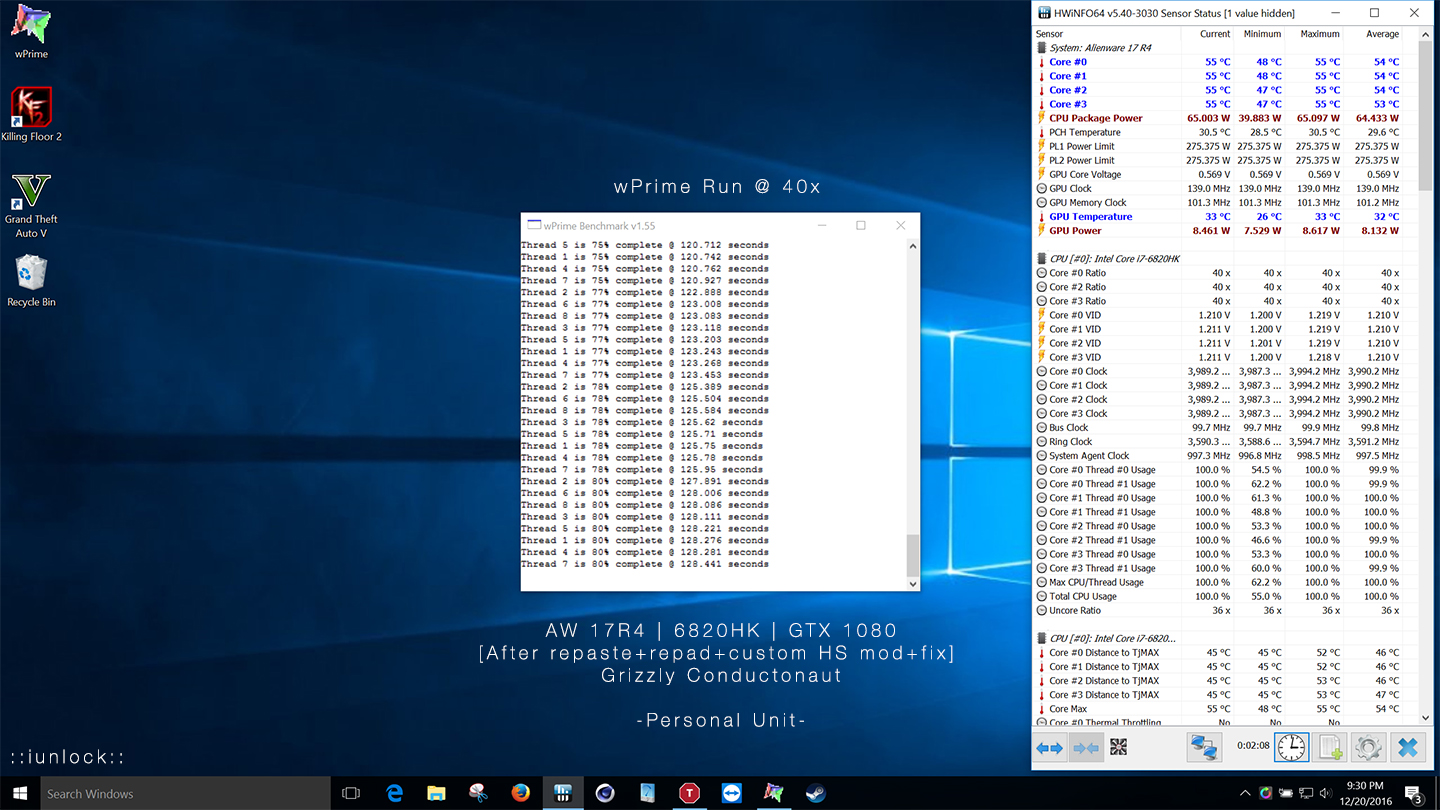

    Finally got around to working on my personal unit...it's been turn on only 3 times since I've received it LOL...

    No more uneven core issues....moral of the story, it can be fixed and the results are real.

    [​IMG]

    [​IMG]

    More to come...

  45. sawood711

    sawood711 Notebook Geek

    Reputations:
    0
    Messages:
    87
    Likes Received:
    31
    Trophy Points:
    26
    Is the 17.0 W/mK Fuji pads good? Amazon doesn't have the 11.0 W/mK.

  46. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    As5 is as bad as conductonaut since its conductive

  47. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Too hard, the 14 or 11 is softer and conforms to heatsink better

  48. sawood711

    sawood711 Notebook Geek

    Reputations:
    0
    Messages:
    87
    Likes Received:
    31
    Trophy Points:
    26
    Thanks, I am looking at buying something now so I can get it done over my break from work. Do you know if local stores that might carry this?

  49. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    I very much doubt so.

    You can also opt for arctic thermal pads for 6w/mk and much cheaper

  50. sawood711

    sawood711 Notebook Geek

    Reputations:
    0
    Messages:
    87
    Likes Received:
    31
    Trophy Points:
    26
    I ordered the 11w/mk from FrozenCPU.com. Hopefully I'll have it by next Monday or Tuesday. Trying to knock it out while I'm on break.

← Previous pageNext page →
